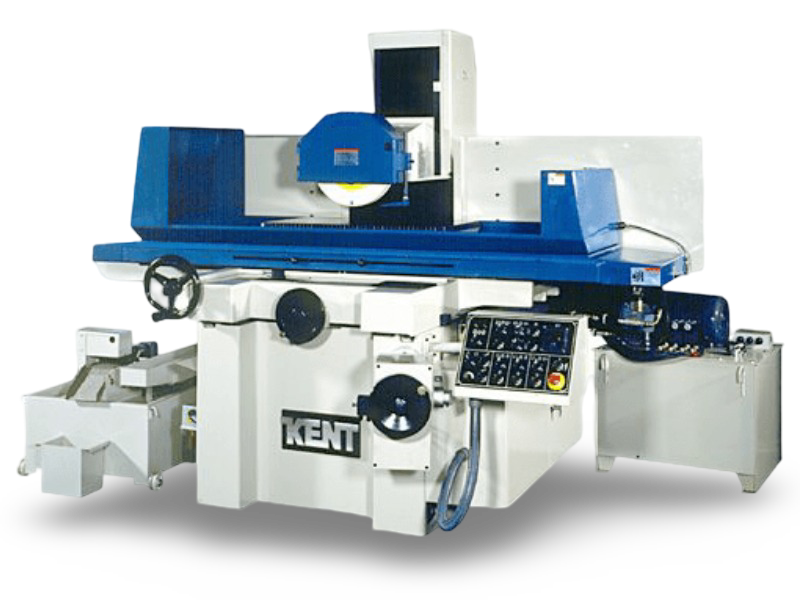

Kent - Surface Grinder 84AH / AHD

1
Kent - Surface Grinder 84AH / AHD
Kent - Surface Grinder 84AH / AHD
Category Specification 84AH / AHD
Overall Table Working Area mm 800 x 400
Longitudinal Table Travel mm 910
Cross Feed Table Travel mm 450
Distance Spindle Center to Table mm 600
Table Load Including Magnetic Chuck kgs 700
T-Slot mm * N 14 x 1
Longitudinal Table Speed m/min 5-25
Cross Feed on Hand Wheel 1 gra. mm 0.02
Auto Cross Feed per Stroke mm 0.25 - 20
Power Cross Feed (50Hz) mm/min 1000
Power Cross Feed (60Hz) mm/min 1200
Wheel Dimension mm 355 x 38 x 127
Spindle Speed (50Hz) rpm 1450
Spindle Speed (60Hz) rpm 1740
Vertical on Handwheel 1 gra. mm 0.01 / 0.001
Auto Down Feed Elevation mm 0.005 - 0.025 (AHD)
Power Head Increment (50Hz) mm/min 133 (AHD)
Power Head Increment (60Hz) mm/min 160 (AHD)
Spindle Motor KW * P 5.6 x 4
Power Elevation Motor KW * P 0.08 x 6
Hydraulic Motor KW * P 2.2 x 6
Dust Collection Motor W * P 375 x 2
Coolant Motor W * P 190 x 2
Cross Feed Motor WP 80 x 6
Machine Height mm 1875
Floor Space mm 3600 x 2600
Net Weight kgs 2800
Gross Weight kgs 3000
