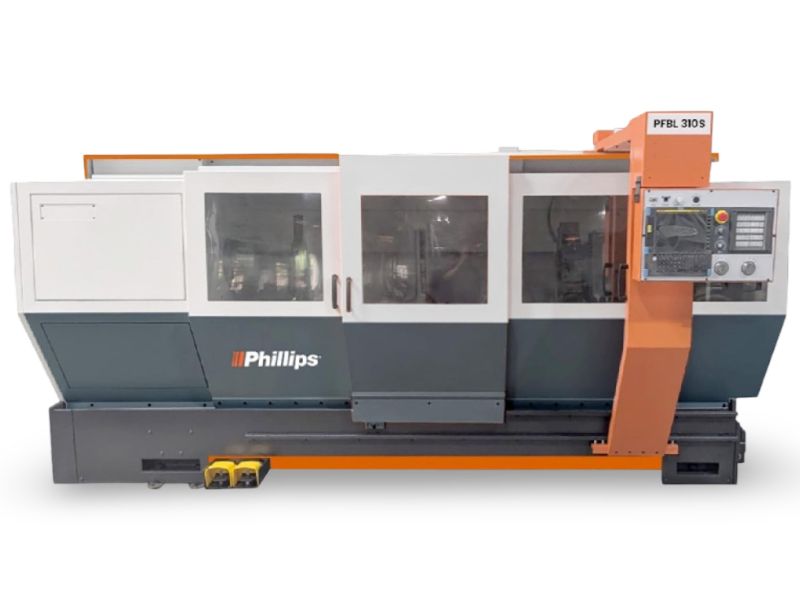

Phillips Flatbed Lathe - PFBL Series
| Description | PFBL 310 x 2000 | PFBL 310 x 3000 | PFBL 325 x 2000 | PFBL 325 x 3000 |
|---|---|---|---|---|
| Centre Distance (mm) | 2000 | 3000 | 2000 | 3000 |
| Centre Height (mm) | 310 | 310 | 325 | 325 |
| Swing Over Bed (mm) | 620 | 620 | 650 | 650 |
| Swing Over Carriage (mm) | 540 | 540 | 590 | 590 |
| Swing Over Cross Slide (mm) | 370 | 370 | 490 | 490 |
| Cross Slide Travel (mm) | 270 | 270 | 270 | 270 |
| Length of Carriage (mm) | 550 | 550 | 550 | 550 |
| Length of Cross Slide (mm) | 600 | 600 | 600 | 600 |
| Bed Width (mm) | 350 | 350 | 350 | 350 |
| Headstock Main Spindle Bore (mm) | 105 (Optional 155) | 105 (Optional 155) | 80 (Optional 105/155) | 80 (Optional 105/155) |
| Main Spindle Nose / Camlock | A2 – 8 (A2-11) | A2 – 8 (A2-11) | A2 – 8 (A2-11) | A2 – 8 (A2-11) |
| Main Spindle Morse Taper (MT) | 5 | 5 | 5 | 5 |
| Speed Range (RPM) Range I | 0 – 2500 (0 – 300) | 0 – 2500 (0 – 300) | 300 – 200 | 80 – 200 , 50 – 120 |
| Range II | 300 – 1000 | 300 – 1000 | 200 – 550 | 200 – 465, 120 – 280 |
| Range III | – | – | 550 – 1500 | 465 – 1250, 290 – 800 |
| Working Feed Z, X (mm/min) | 0 – 7000 | 0 – 7000 | 0 – 7000 | 0 – 7000 |
| Rapid Traverse Z (m/min) | 10 | 10 | 7 | 7 |
| Rapid Traverse X (m/min) | 10 | 10 | 7 | 7 |
| Z-Axis Ball Screw Ø (mm) | 40/10 | 40/10 | 40/10 | 40/10 |
| X-Axis Ball Screw Ø (mm) | 20/5 | 20/5 | 20/5 | 20/5 |
| Maximum Tool Dim. (mm) | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 |
| Boring Bar (mm) | 40 | 40 | 40 | 40 |
| Tailstock Barrel Diameter (mm) | 95 | 95 | 95 | 95 |
| Tailstock Barrel Travel (mm) | 220 | 220 | 220 | 220 |
| Tailstock Morse Taper (MT) | 5 | 5 | 5 | 5 |
| Number of Stations | 8 | 8 | 8 | 8 |
| Position Accuracy (mm) | 0.01 | 0.01 | 0.01 | 0.01 |
| Repeatability (mm) | 0.01 | 0.01 | 0.01 | 0.01 |
| Fixed Steady Capacity (mm) | 185 | 185 | 185 | 185 |
| Follow Rest Capacity (mm) | 130 | 130 | 130 | 130 |
| Main Motor Power (kW) | 15 | 15 | 7.5 | 7.5 |
| Pump Motor Power (kW) | 0.37 | 0.37 | 0.37 | 0.37 |
| Discharge (lpm) | 25 | 25 | 25 | 25 |
| Capacity of Coolant Tank (lts) | 151 | 181 | 151 | 181 |
| Acceptance Accuracy | DIN 8605 | DIN 8605 | DIN 8605 | DIN 8605 |
