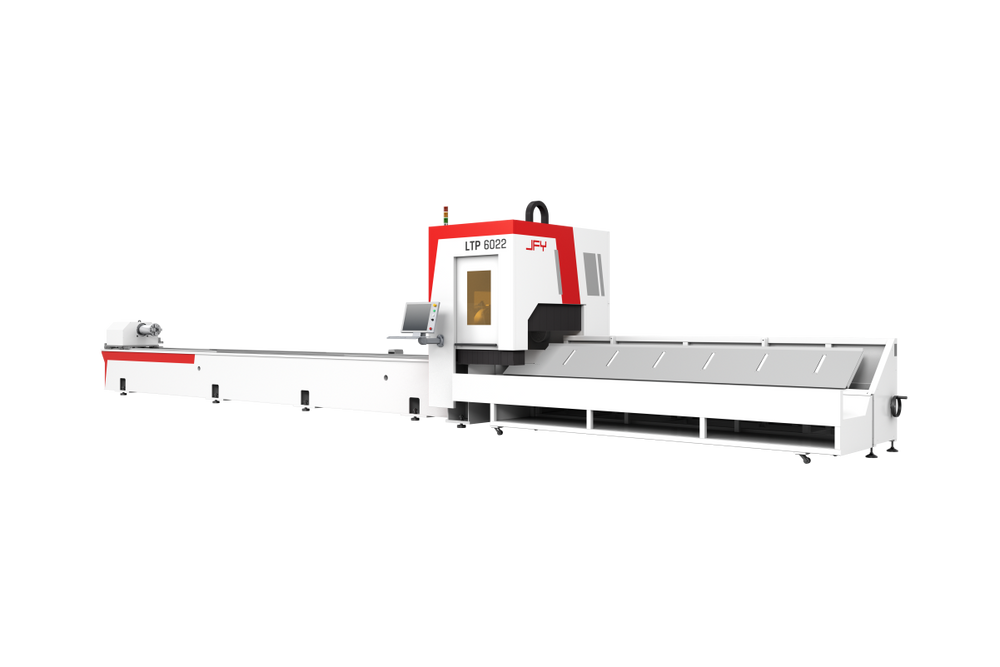

JFY - CNC Fiber Laser Tube Cutting Machine
JFY - CNC Fiber Laser Tube Cutting Machine JFY - CNC Fiber Laser Tube Cutting Machine JFY - CNC Fiber Laser Tube Cutting Machine JFY - CNC Fiber Laser Tube Cutting Machine

JFY CNC laser tube cutting machine is a high-precision and high-efficiency tube processing equipment. With friendly HMI from FSCUT 5000 control and laser modulation function, it provides an easy operation and possibility for capacity expansion and upgrade. JFY provides metal forming processing solutions for many industries such as switchgear/ automobiles, home appliances, electronics, instrumentation, aviation, agricultural industries, etc.


Features

- Servo motor drive system, with rack and pinion transmission and guided by imported linear guides

- Dynamic real-time cutting simulation to easily check the actual processing progress

- Bus control system with high piercing precision, fast and stable when cutting corners

- Tube Supporting Unit

- Good anti-vibration ability thanks to limited element analysis

- German Manufacturing Standard

- RayTools BM111TC auto focus tube cutting head

- Advanced digital control system with reliable anti-interference ability


Advantages

- Provides fast-speed and high-precision movement

- Sectional welding technology from TRUMPF to make sure the machine bed is not deformed on a long-term basis

- Faster and more stable performance

- Auto focus to reduce human intervention and improve piercing and cutting efficiency

Single module fiber lasers from JFY, suitable for remote processing, high-frequency laser cutting and clean surface cutting

- Tubes supports nesting of parts of various shape all at once with minimum waste

- Flexible and easy-to-use functions for user to adjust parts drawing

- Tubes shall have no severe rusting that may affect cutting quality and precision.

- Tubes shall be straight with tortuosity less than 1mm/m.

- If the tube has a welding seam, external welding seam ≤0.3mm high, internal welding seam ≤2mm high.
