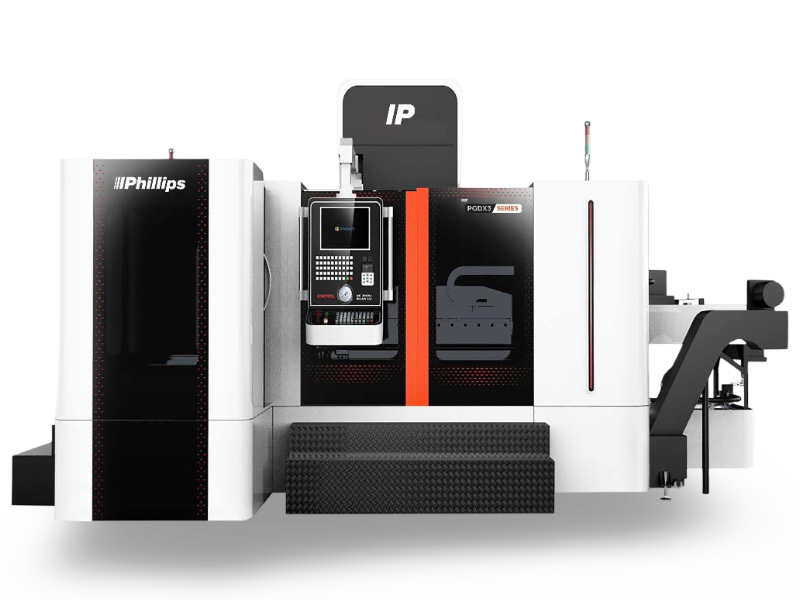

Phillips Deep Hole Drilling - Three Axis CNC Gun Drilling Machine - PGDX3 Series
| Capacity | Specification | PGD0335-X3-1000 |
|---|---|---|
| Working Capacity | Drill hole diameter range Max. drill depth |
Ø3 – Ø35 1000mm |
| X axis | Stroke Rapid move speed Feeding motor torque |
1000mm 1000mm Feeding motor torque |
| Y axis | Stroke Rapid move speed Feeding motor torque |
600mm 3000mm/min 15Nm |
| Z axis | Feeding speed range Rapid move speed Feeding motor torque |
5~500mm/min 4m/min 8Nm |
| Coolant system | Rapid move speed Feeding speed range Feeding motor torque |
5000mm/min 5-500mm/min 7.5Nm |
| Drill box | Max. Rotary speed Motor power |
6000r/min 5.5kw |
| Working table | Size (XxZ) Working table load |
1500x1000mm 6T |
| Coolant system | Max. Pressure Max. Flow Filter accuracy |
1-8MPa (Adjustable) 6-100L/min (Adjustable) 20µm |
| Others | Machine total power (roughly) | 30KW |
