Internal Grinding

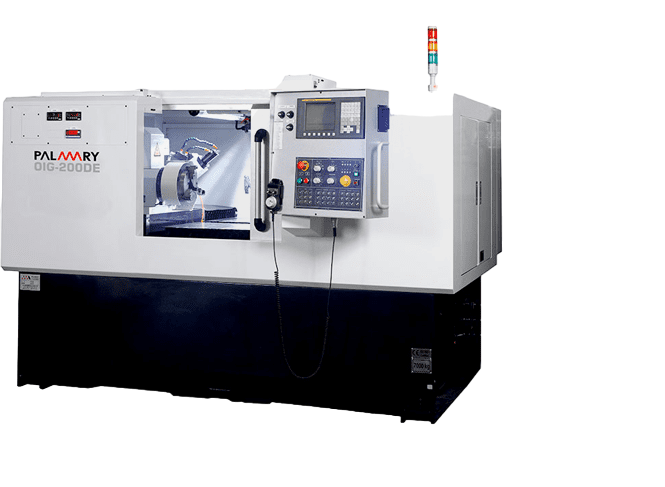

Palmary - Internal Grinder OIG 200 DE

1
Rs. 4,000,000
Palmary - Internal Grinder OIG 200 DE
Palmary - Internal Grinder OIG 200 DE
TECHNICAL DATA OIG 200 DE
Max. external grinding diameter Ø200 mm
Max. internal grinding diameter (I.D.: length = 1.3) Ø150 mm
Max. workpiece length 200 mm
Internal wheel spindle (Z axis)
Spindle outer diameter Ø90 mm
Linear velocity 2000 M/min
Spindle speed 10000~50000 r.p.m.
External wheel spindle (Y axis)
O.D. x width x I.D. Ø355 X 38 X Ø127 mm
Swivel angle (manual) 0゜ and 15゜
Spindle speed 1500 ~ 4500 r.p.m.
Table
Max. table traverse 500 mm
Max. table feed 5 M/min
Min. setting unit 0.001 mm
