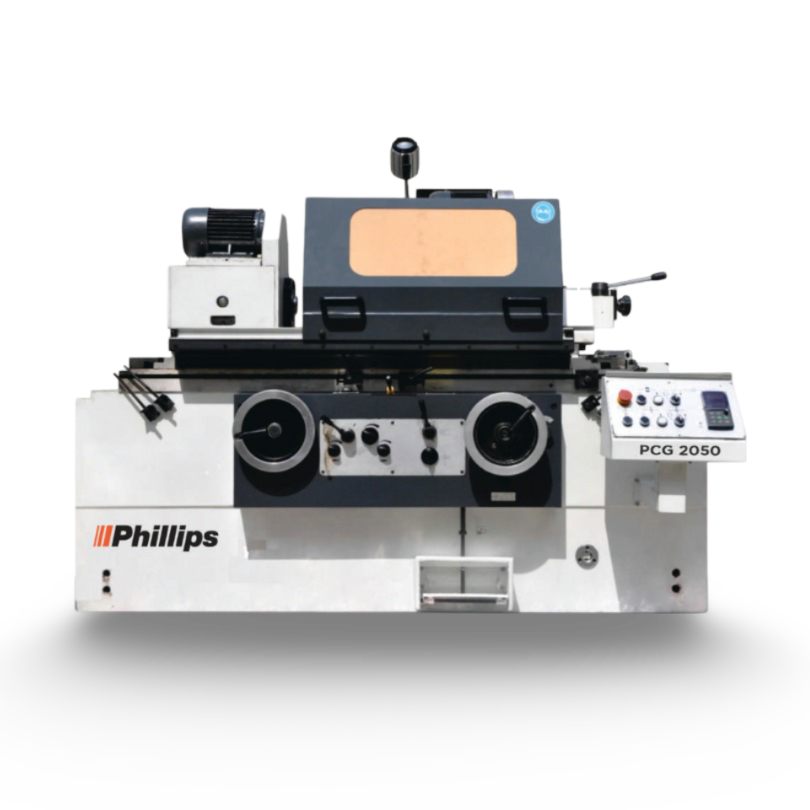

Phillips Cylindrical Grinder
| TECHNICAL SPECIFICATION | PCG 2050 | PCG 2075 | PCG 32100, 321500, 32200, 32300 | PCG 50150, 50200, 50300, 50400 | PCG 63200, 63300, 63400, 63500 |
|---|---|---|---|---|---|
| Max. length ground (OD) / Distance between center (mm) | 500 | 750 | 1000, 1500, 2000, 3000 | 1500, 2000, 3000, 4000 (3000, 4000) | 2000, 3000, 4000, 5000 |
| Center Height (mm) | 135 | 135 | 180 | 270 | 370 |
| Dia. Ground (OD) (mm) | 5~200 | 5~200 | 8~320 | 25~500 | 30~630 |
| Dia. Ground (ID) (mm) | 25~100 | 25~100 | 30~100 | 30~200 | 30~250 |
| Max. length ground (ID) (mm) | 125 | 125 | 125 | 320 | 320 |
| Max. weight of workpiece (kg) | 100 | 100 | 150 | 1000 (2000) | 3000 |
