CNC Fiber Laser Cutting Machine

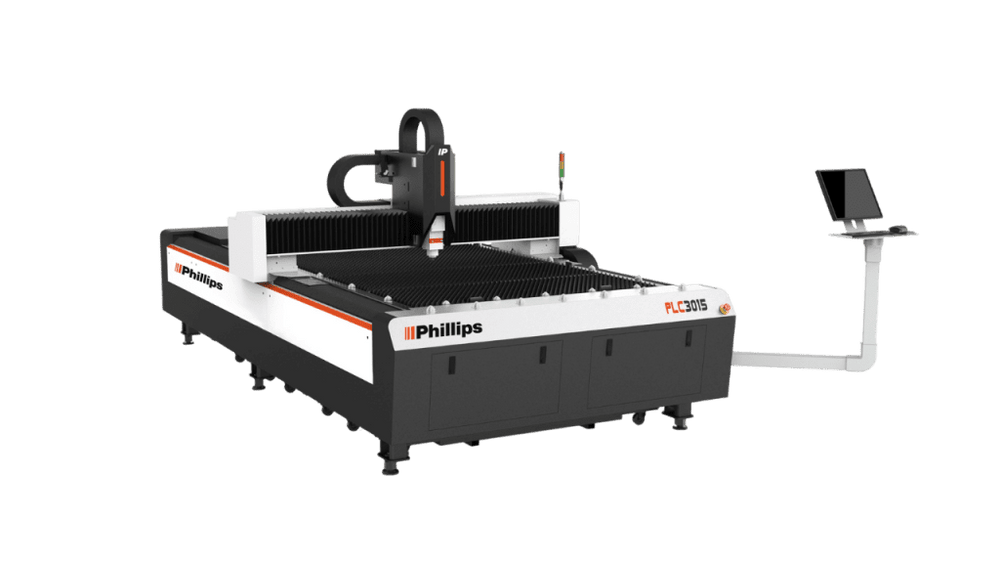

Phillips Fiber Laser Cutting Machines
| Working parameter | PLC3015 |
|---|---|
| Working area | 1500 mm x 3000 mm |
| Laserpower | 3000 W ~ 12000 W |
| Transmission system | Double rack & pinion and servo drive |
| Maximum Acceleration | 1.4G |
| Maximum speed | 80 m/min |
| Positioning accuracy | ±0.03 mm / 1000 mm |
| Repositioning accuracy of clamp | ±0.02 mm / 1000 mm |
| Format | LXD, DXF, PLT, AI, NC etc. |
| Working environment | 0~45°, Humidity ≤80%, non-condensing |
| Equipment power | 8KW (not include laser generator and chiller) |
| Power supply | Three phase 380V/50Hz or 60Hz |
| Total weight | 3000 Kg |
| Overall size | 5300mm × 2260mm × 2100mm |
