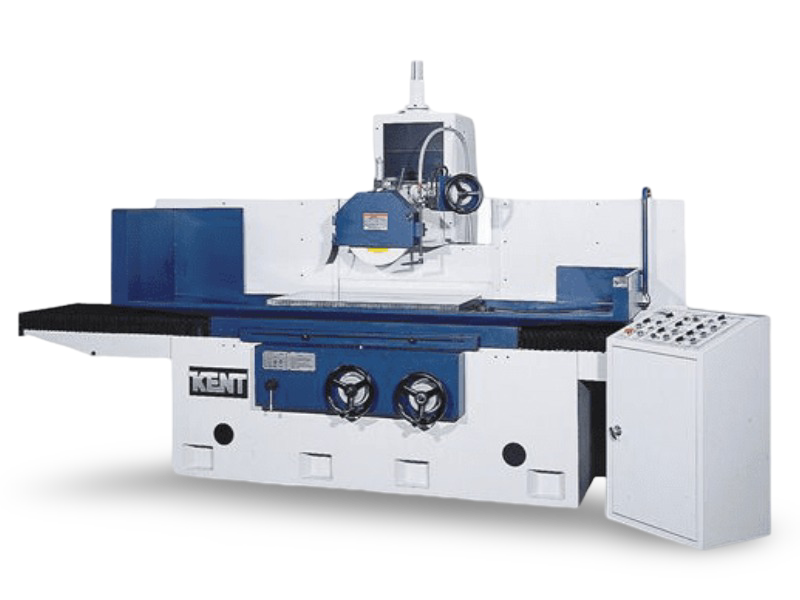

Kent Surface Grinder 510 AH / AHD

1
Kent Surface Grinder 510 AH / AHD
Kent Surface Grinder 510 AH / AHD
Category Specification 510AH/AHD
Overall Table Working Area mm 1000 x 500
Longitudinal Table Travel mm 1140
Cross Feed Table Travel mm 540
Distance Spindle Center to Table mm 575
Table Load Including Magnetic Chuck kgs 1000
T-Slot mm * N 16 x 3
Longitudinal Table Speed m/min 7-25
Cross Feed on Hand Wheel 1 gra. mm 0.02
  1 rev. mm 5
Auto Cross Feed per Stroke mm 0.25 - 20
Power Cross Feed (50Hz) mm/min 1250
Power Cross Feed (60Hz) mm/min 1500
Wheel Dimension mm 355 x 38 x 127
Spindle Speed (50Hz) rpm 1450
Spindle Speed (60Hz) rpm 1740
Vertical on Handwheel 1 gra. mm 0.002
  1 rev. mm 0.5
Auto Down Feed Elevation mm 0.005 - 0.04 (AHD)
Power Head Increment (50Hz) mm/min 230
Power Head Increment (60Hz) mm/min 280
Spindle Motor KW * P 5.6 x 4
Power Elevation Motor KW * P 0.19 x 4
Hydraulic Motor KW * P 2.2 x 6
Dust Collection Motor W * P 375 x 2
Coolant Motor W * P 190 x 2
Cross Feed Motor W * P 190 x 6
Machine Height mm 2400
Floor Space mm 4445 x 2100
Net Weight kgs 5000
Gross Weight kgs 5800
