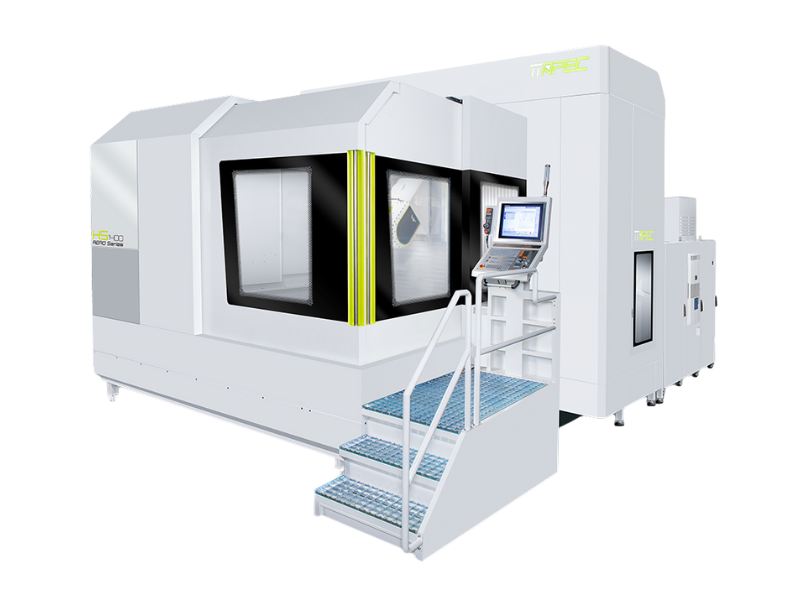

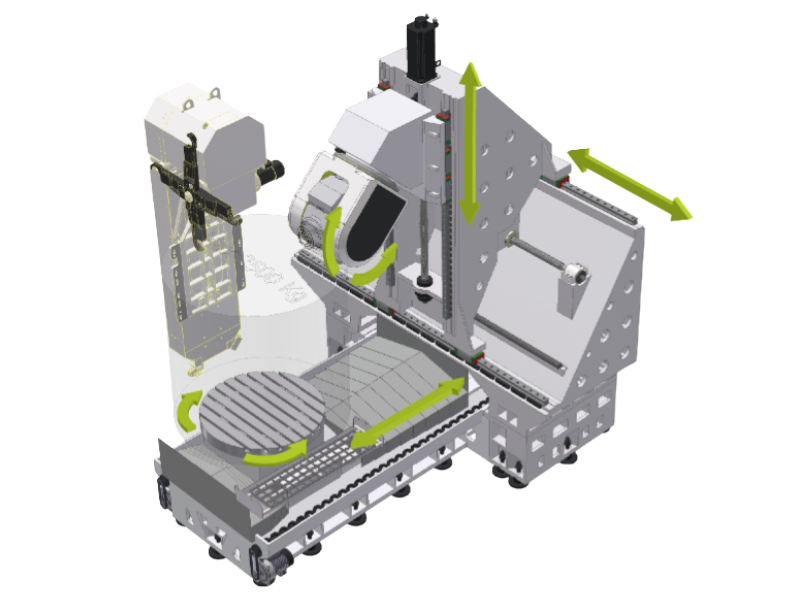

APEC - 5-axis Horizontal Machining Center
| Specification | Unit | HS1400 |
|---|---|---|
| X-axis | mm | 1,800 |
| Y-axis | mm | 1,250 |
| Z-axis | mm | 1,320 |
| B-axis torque(S1/max) | mm | 2,134/3,777 |
| X.Y.Z axis acceleration | m /min | XYZ=50 |
| Spindle taper | HSK100A | |
| Spindle speed | rpm | 12,000 |
| Spindle power ( S 1 / S6) |
kW | 50/76 |
| Spindle torque ( S 1 / S6) |
Nm | 200/302 |
| Tool shank | pcs | 40T |
| Max. tool length | mm | 450 |
| Max. tool diameter with adjacent tool |
mm | Ø125 |
| Max. tool diameter without an adjacent tool |
mm | Ø250 |
| Weight | tons. | 25 |
