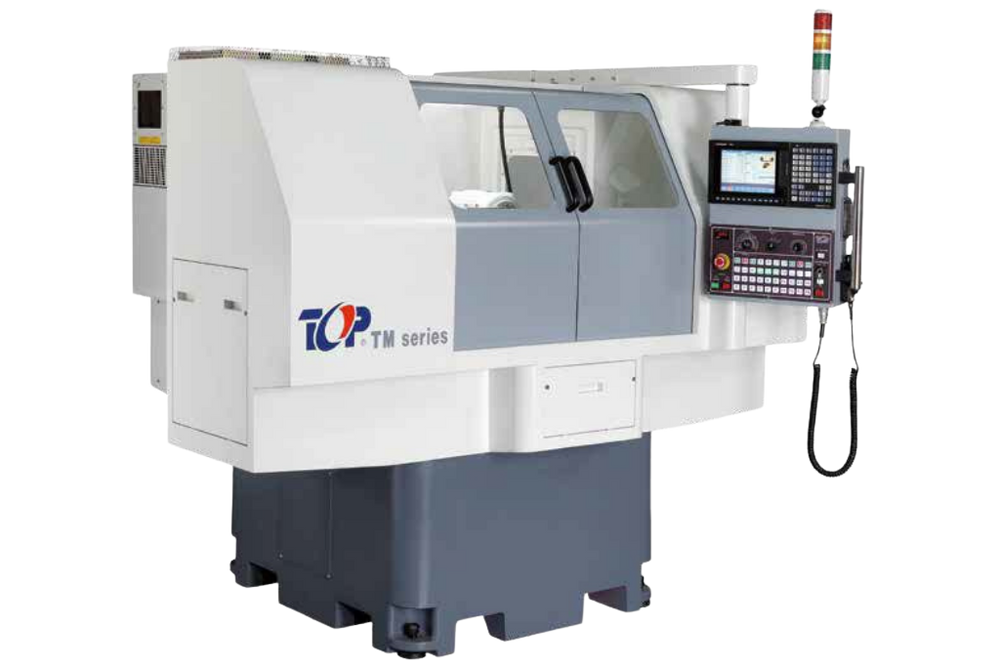

TOPWORK - TM Series
| Specification | TM-2 | TM-3 | TM-4 |
|---|---|---|---|
| General Capacity | |||
| Max. Workpiece Length | 250 mm | 250 mm | 250 mm |
| Max. Workpiece Diameter | Ø200 mm | Ø200 mm | Ø200 mm |
| Grinding Spindle and Motor | |||
| Spindle Speed | 1000–6000 rpm | 1000–6000 rpm | 1000–6000 rpm |
| Spindle Motor | 2.25 kW (3 HP) | 2.25 kW (3 HP) | 2.25 kW (3 HP) |
| Spindle Diameter | Ø80 mm | Ø80 mm | Ø80 mm |
| Workhead Taper | MT#5, NT/BT 50 | MT#5, NT/BT 50 | BT-40 |
| Axis Travel | |||
| X-axis | 250 mm | 250 mm | 250 mm |
| Y-axis | 200 mm | 200 mm | 200 mm |
| Z-axis | 170 mm | 170 mm | 170 mm |
| A-axis | 360° | 360° | 360° |
| Table Size / Swiveling Angle | 940 × 135 mm / ±5° | 940 × 135 mm / ±5° | 940 × 150 mm / ±0° |
| Feed Rate (X/Y) | 6 m/min | 6 m/min | 6 m/min |
| Axis Motor and Coolant System | |||
| X-axis Servo Motor | 1 kW (1.3 HP) | 1 kW (1.3 HP) | 1 kW (1.3 HP) |
| Y-axis Servo Motor | 1 kW (1.3 HP) | 1 kW (1.3 HP) | 1 kW (1.3 HP) |
| Z-axis Servo Motor | - | 1 kW (1.3 HP) | 1 kW (1.3 HP) |
| A-axis Servo Motor | - | - | 0.4 kW (0.54 HP) |
| Coolant | 1/8 HP | 1/8 HP | 1/8 HP |
| Lubrication | 25 W | 25 W | 25 W |
| Controller | Mitsubishi / FANUC | Mitsubishi / FANUC | Mitsubishi / FANUC |
| Dimensions | |||
| Floor Space | 2080 × 1765 × 1780 mm | 2080 × 1765 × 1780 mm | 2080 × 1765 × 1780 mm |
| Weight | 2200 kg | 2200 kg | 2200 kg |
