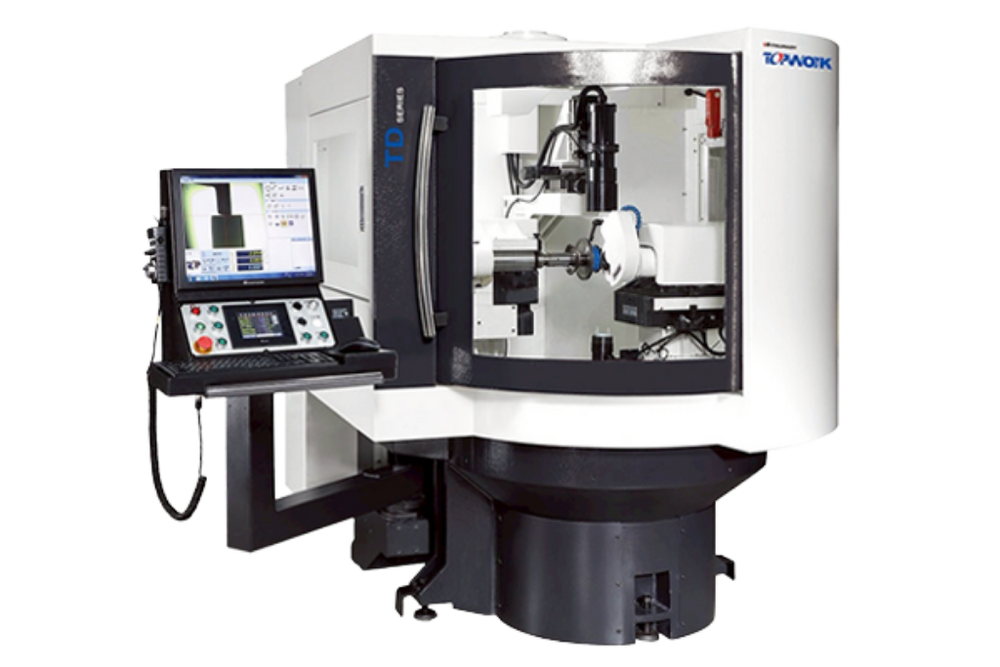

TOPWORK - TD Series
| Specification | TD-2 | TD-3 | TD-5 |
|---|---|---|---|
| Diamond / CBN Grinding Wheel Module | |||
| Spindle | BT-40 | BT-40 | BT-40 |
| Max. Diameter | Ø250 mm | Ø250 mm | Ø250 mm |
| Min. Diameter | Ø50 mm | Ø50 mm | Ø50 mm |
| Speed | 100 to 2500 RPM | 100 to 2500 RPM | 100 to 2500 RPM |
| Motor Power | 2 HP (1.5 kW) | 2 HP (1.5 kW) | 2 HP (1.5 kW) |
| W-axis Movement & Drive | 180 mm / Manual | 280 mm / Manual | 280 mm / Servo |
| U-axis Movement & Drive | 140 mm / Manual | 140 mm / Manual | 140 mm / Servo |
| Dressing Wheel Module | |||
| Dimension of Wheel | Ø205 × 19t mm | Ø205 × 19t mm | Ø205 × 19t mm |
| Speed | 200 to 3500 RPM | 200 to 3500 RPM | 200 to 3500 RPM |
| Motor Power | 1 HP (0.75 kW) | 1 HP (0.75 kW) | 1 HP (0.75 kW) |
| X-axis Feed Stroke & Drive | 100 mm / Servo | 100 mm / Servo | 100 mm / Servo |
| Z-axis Swing Distance & Drive | 20 to 80 mm / Servo | 20 to 80 mm / Servo | 20 to 80 mm / Servo |
| B-axis Rotation Angle & Drive | ±95° / Manual | ±95° / Servo + Reducer | ±95° / Servo + Harmonic Drive |
| Dimensions | |||
| L × W × H | 2106 × 1807 × 1815 mm | 2173 × 1874 × 1815 mm | 1994 × 2209 × 2000 mm |
| Weight | 1600 kg | 1750 kg | 2260 kg |
| Controller | PLC | PLC | Mitsubishi M80 |
