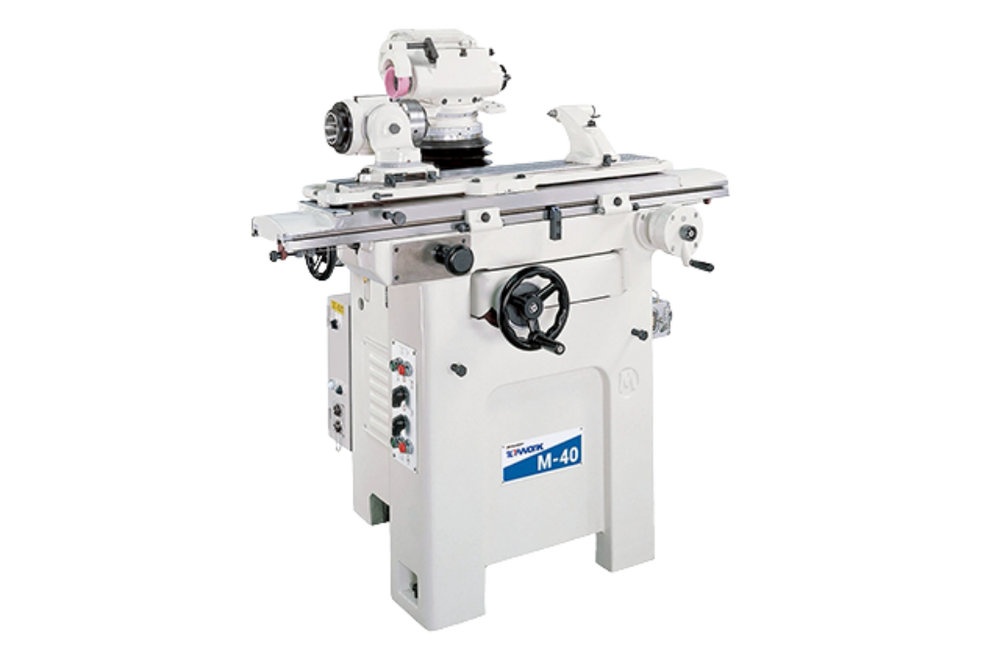

TOPWORK M-40 & M-60

1
TOPWORK M-40 & M-60
TOPWORK M-40 & M-60
Specification M-40 M-60
Stroke
Longitudinal Movement of Table (X-axis) 400 mm 600 mm
Cross Movement of Saddle (Y-axis) 250 mm 250 mm
Vertical Movement of Wheelhead (Z-axis) 250 mm 250 mm
Distance Between Center 700 mm 900 mm
Distance Between Tailstock and Workhead 580 mm 780 mm
Workbench
T-slot 15 mm (+0.05 ~ +0.10 mm) 15 mm (+0.05 ~ +0.10 mm)
Working Range of Table 135 × 940 mm 135 × 1140 mm
Rotative Angle of Table ±60° ±60°
JOG Adjustment of Table ±10° ±10°
Workhead
Workhead Taper One end MT5 / the other NT50 One end MT5 / the other NT50
Wheelhead
Inclination of Wheelhead ±15° ±15°
Rotative Angle of Wheelhead 360° 360°
Distance Between Center of Spindle and Table Max. 300 mm / Min. 50 mm Max. 300 mm / Min. 50 mm
Distance Between Center of Spindle and T-slot Max. 415 mm / Min. 165 mm Max. 415 mm / Min. 165 mm
Peak Power 1.5 HP (1.1 kW)
2 HP (1.49 kW) - opt.
3 HP (2.23 kW) - opt.
1.5 HP (1.1 kW)
2 HP (1.49 kW) - opt.
3 HP (2.23 kW) - opt.
Grinding Wheel Spindle Speed 2600/3700/6200 rpm 2600/3700/6200 rpm
Machine Dimensions
Dimensions (W × D × H) 1332 × 1318 × 1480 mm 2142 × 1282 × 1384 mm
Weight 970 kg 1370 kg
