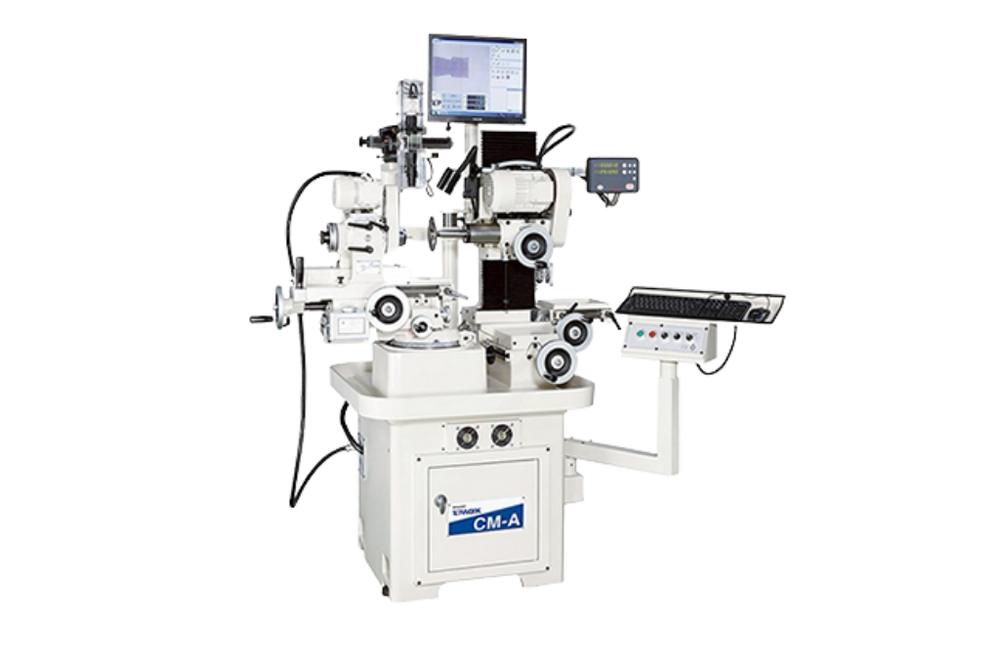

TOPWORK - CM Series
| Specification | CM-2 | CM-A |
|---|---|---|
| Workhead | ||
| Max. Swing Diameter | 304 mm | 304 mm |
| Max. Collet Working Diameter | 32 mm | 32 mm |
| Min. Collet Working Diameter | 5 mm | 5 mm |
| Max. Helix Angle | 60° | 60° |
| Max. Distance Between Spindle Nose and Tailstock Center | 135 mm | 135 mm |
| Workhead Stroke | ||
| X1-axis - Slide Travel | 130 mm | 130 mm |
| Y1-axis - Offset Slide Travel | 100 mm | 100 mm |
| Front of Center | 50 mm | 50 mm |
| Rear of Center | 50 mm | 50 mm |
| Adjustment of Workhead Angle | ||
| A-axis - Rotation of Horizontal Plane | ±105° (210°) | ±105° (210°) |
| B-axis - Rotation of Vertical Plane | ±40° (80°) | ±40° (80°) |
| Grinding Wheel Head | ||
| Grinding Wheel Diameter | 100 mm | 100 mm |
| Grinding Wheel Head Stroke | ||
| X-axis - Left-Right Slide Travel | 110 mm | 110 mm |
| Y-axis - Total Front-to-Rear Strokes | 170 mm | 170 mm |
| Z-axis - Total Vertical Slide Stroke | 240 mm | 240 mm |
| Additional Tilt | - | ±15° (30°) |
| Spindle Speed | ||
| Workhead Speed | 370/440 rpm (50/60 Hz) | 370/440 rpm (50/60 Hz) |
| Grinding Wheelhead Speed | 4000/6000/8000 rpm | 4000/6000/8000 rpm |
| Motor | ||
| Workhead AC | 1/4 HP (0.186 kW) | 1/4 HP (0.186 kW) |
| Grinding Wheelhead AC | 1/2 HP (0.373 kW) | 1 HP (0.75 kW) |
| Dimension | ||
| Dimensions (W × D × H) | 1450 × 1463 × 1645 mm | 2070 × 2025 × 2030 mm |
| Weight | 970 kg | 1070 kg |
