ZNC Die Sinker EDM

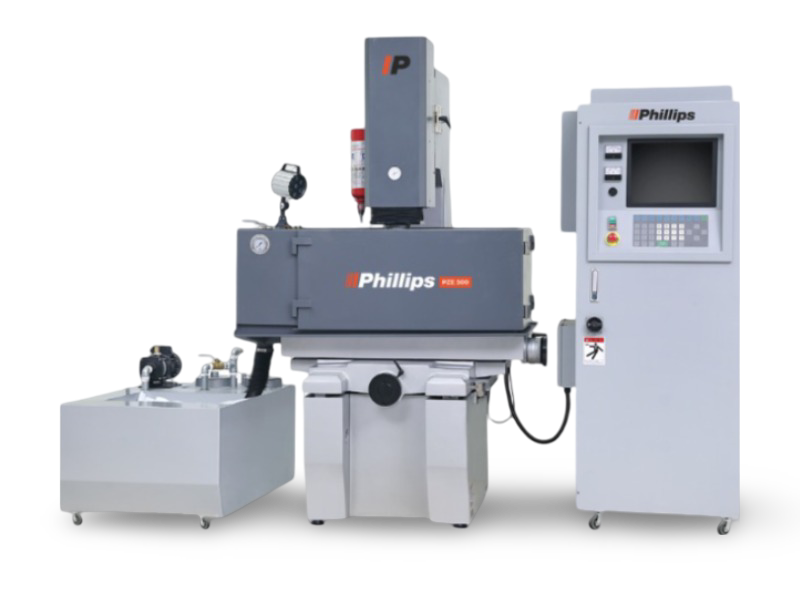

Phillips - ZNC Die Sinker EDM - PZE 550
| Specification Details | Units | PZE 550 |
|---|---|---|
| Work Tank size | mm | 1420 × 850 × 550 |
| Table Size | mm | 1000 × 500 |
| Travel X/Y/Z | mm | 550 × 450 × 250 |
| 2nd Z axis Travel | mm | 300 |
| Distance from electrode to table | mm | 640 |
| Max load of electrode weight | kg | 100 |
| Load to table | kg | 1500 |
| Dimensions | mm | 1490 × 1460 × 2200 |
| Net machine weight | kg | 2200 |
| Dielectric tank capacity | L | 540 |
