ZNC Die Sinker EDM

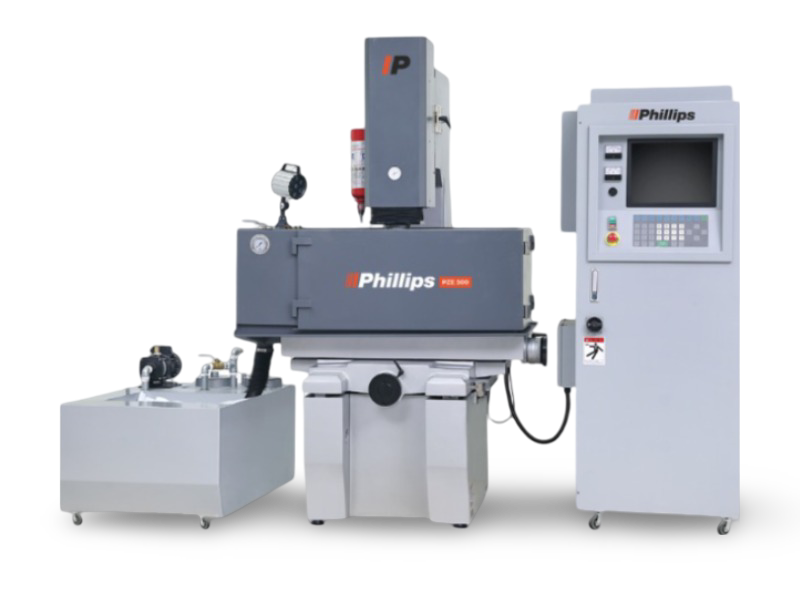

Phillips - ZNC Die Sinker - PZE 450
| Specification Details | Units | PZE 450 |
|---|---|---|
| Work Tank size | mm | 1200 × 620 × 450 |
| Table Size | mm | 700 × 400 |
| Travel X/Y/Z | mm | 450 × 350 × 200 |
| 2nd Z axis Travel | mm | 200 |
| Distance from electrode to table | mm | 520 |
| Max load of electrode weight | kg | 80 |
| Load to table | kg | 1000 |
| Dimensions | mm | 1900 × 1500 × 2200 |
| Net machine weight | kg | 2000 |
| Dielectric tank capacity | L | 490 |
