vertical grinding

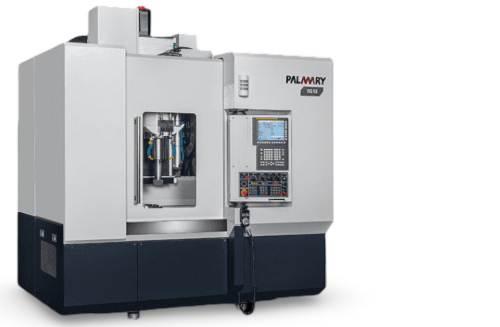

Palmary - VIG-80

Quantity

10 Remaining

Based on PALMARY’s tradition of “Pursuing Quality Perfection”, combined with human engineering design and peak performance concepts, each machine fully reflects PALMARY’s unmatched design and technique. Honeycomb type machine structure assures the best possible rigidity and stability.

Features:

1. High rigidity machine bed
2. High Grinding efficiency
3. Auto Tool Change System (ATC)
4. High Precision
5. OD Grinding Range - Ø65- 800 mm (GW Speed 180 M/min)

TECHNICAL DATA	VIG-80
O.D. grinding range	Ø65~800 mm (GW speed 180 M/min)
Max. I.D. grinding length	~Ø225 : 275 mm ; Ø225~ : 500 mm
Max. O.D. grinding length	500 mm
Spindle swivel dia.	Ø850 mm
Max. workpiece length	500 mm
Max. workpiece load	1000 kg
Wheel Spindle
Distance between spindle upper side to G.W.	670 mm
Spindle speed	1800~10000 r.p.m.
G.W. diameter	Ø65~305 mm
Max. linear speed	2700 M/min
Tool holder type	HSK-E100
Work Spindle
Work table size (face plate)	Ø550 mm
Work spindle speed	15~150 r.p.m.
