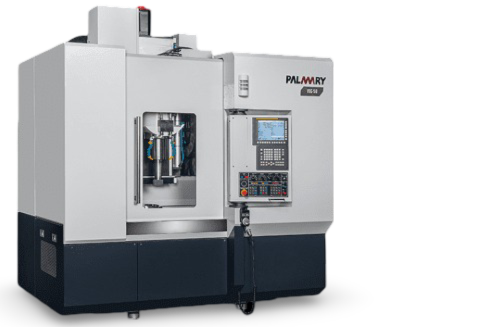

Palmary - Vertical Grinding VIG-50
| TECHNICAL DATA | VIG-50 |
|---|---|
| O.D. grinding range | Ø38~500 mm |
| Max. I.D. grinding length | ~Ø199 : 200 mm ; Ø200~ : 350 mm |
| Max. O.D. grinding length | 350 mm |
| Spindle swivel dia. | Ø550 mm |
| Max. workpiece length | 410 mm |
| Max. workpiece load | 500 kg |
| Wheel Spindle | |
| Distance between spindle upper side to G.W. | 500 mm |
| Spindle speed | 2700~15000 r.p.m. |
| G.W. diameter | Ø25~205 mm |
| Max. linear speed | 2700 M/min |
| Tool holder type | HSK-E63 |
| Work Spindle | |
| Work table size (face plate) | Ø550 mm |
| Work spindle speed | 20~220 r.p.m. |
