Centerless Grinder

Palmary - Centerless Grinder PC 12 S - Manual Series

1

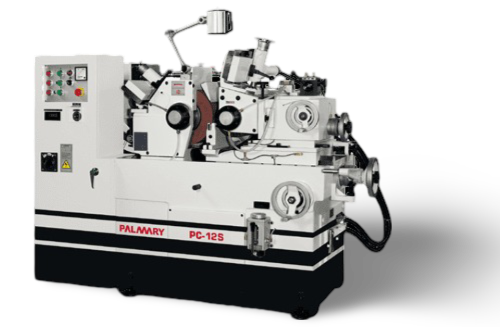

Palmary - Centerless Grinder PC 12 S - Manual Series
Palmary - Centerless Grinder PC 12 S - Manual Series
GRINDING WHEEL
TECHNICAL DATA C 12 S - Manual Servomotor Series
Standard grinding range (dia.) Ø1~40 mm
Capacity increases with special arrangement Ø30~60 mm
Grinding wheel size (O.D. x width x I.D.) Ø305 x 150 x Ø120 mm
Grinding wheel speed 1900 r.p.m.
Grinding wheel motor 7-1/2 HP x 4P



REGULATING WHEEL
TECHNICAL DATA C 12 S - Manual Servomotor Series
Regulating wheel size (O.D. x width x I.D.) Ø205 x 150 x Ø90 mm
Regulating wheel speed 10~300 r.p.m. (variable)
Regulating wheel motor 1.5 kW servo motor
Regulating wheel tilt angle +5° ~ -3°
Regulating wheel swivel angle ±5°
