Nakamura-Tome - MX-100

1
10 Remaining
Nakamura-Tome - MX-100
Nakamura-Tome - MX-100 Nakamura-Tome - MX-100 Nakamura-Tome - MX-100

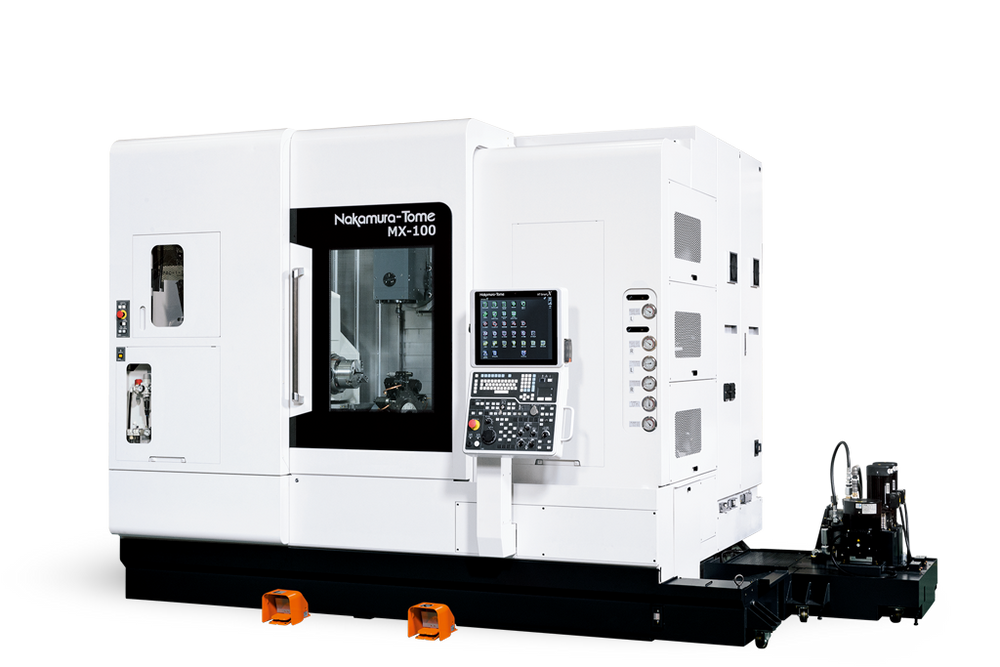

State-of-the-art, compact high-precision Multitasking Machine, with the capabilities of a Machining Center and a Turning Center, featuring advanced software, smart features and up to 96 tools, to ensure high-productivity machining of a wide range of parts, and to smartly meet the needs of various manufacturing sectors.

Features-

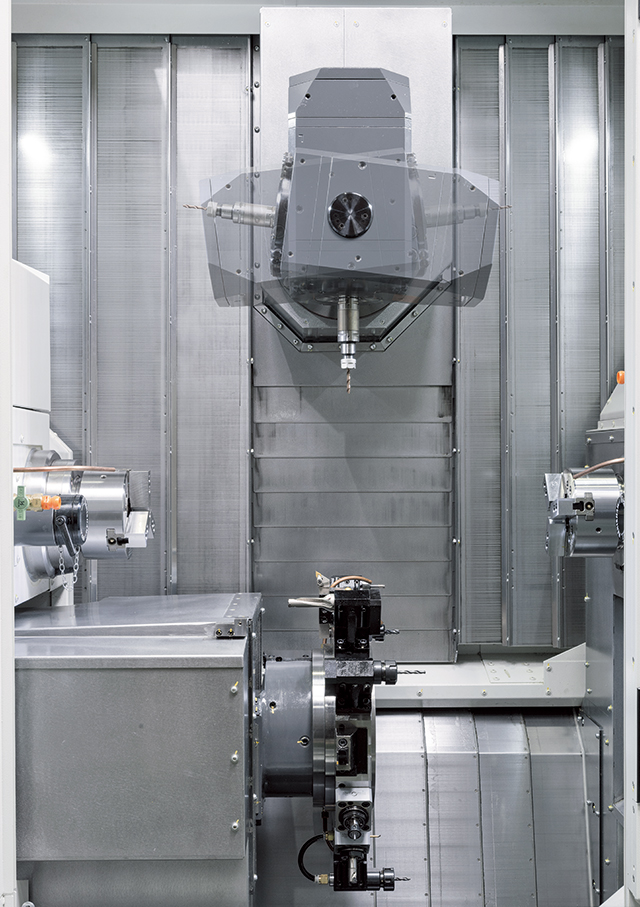

1. Tool Spindle, ATC and Lower-turret,CNC Multitasking Machine with Opposed Twin-spindles.

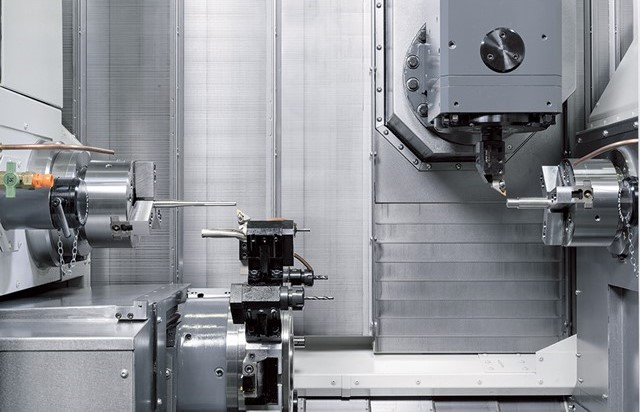

Maximum Tool spindle speed 12,000min-1 (op. 20,000min-1).Distance between spindles 1,000mm.Y-axis stroke 210mm (±105mm).B-axis swiveling range 190° (±95°).Number of tools for ATC magazine 36 pcs. (op. 48 ,72).twin spindle , Save the cycle time by Simultaneous operation with Upper and Lower tools.Faster cycle times thanks to simultaneous machining with upper and lower tools on L/R opposed twin-spindles.The slides, having a vertical column structure, are mounted on a high rigidity horizontal machine bed with low gravity design.


2. Compact ATC Multitasking Machine

Floor space 4,350mm×2,795mm.
Equipped with Built-in Spindles.
Can be equipped with 6 ~ 8-inch chucks.


3. Milling・Y-axis standard

4. ATC tool spindle standard

5. Tool spindle power 11/7.5kW | Spindle speed 12,000 min-1 (op. 20,000min-1)

6. ATC storage capacity 36 tools (op. 48, 72 tools)

7. X-axis travels up to50 mm below the spindle center. Y axis travel ± 105 mm with respect to the spindle center

8. Floor space 4,350mm x 2,795mm (including chip tank)

9. Lower turret milling motor power 7.1/2.2 kW with Max. speed 6,000 min-1

10. Eco-friendly: Grease lubrication of slide axes

11. Advanced software and Smart features
