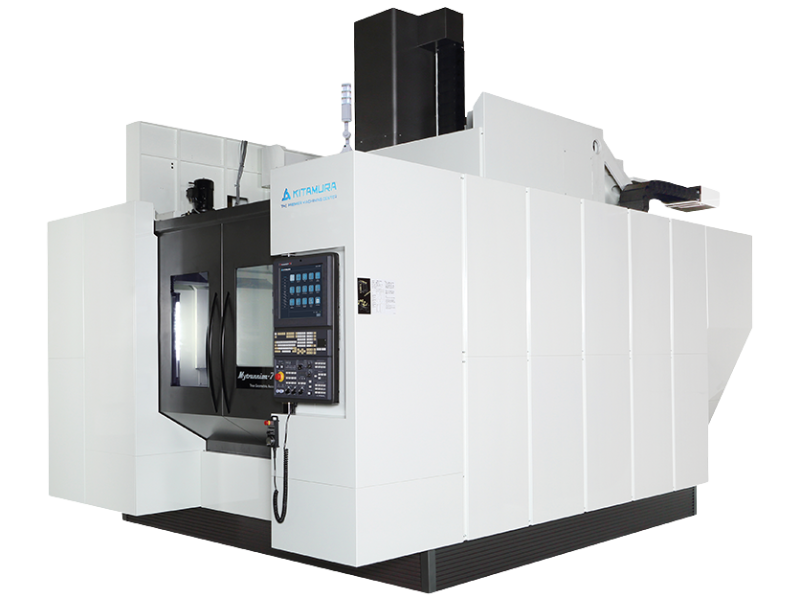

Designed for high precision machining of a variety of large-scale parts, the Mytrunnion-7G 5-axis simultaneous machining center offers an extra-large work envelope of Ø46.1” (comparable to that of an 800mm HMC) x 29.1” high and a table load capacity of 4,440Lbs to easily and more productively process substantial, weighty parts in a single set-up. The Mytrunnion-7G incorporates an A-Axis tilting trunnion table (-120 to +30°) and a rotary C-Axis (360°) with a 0.001° minimum indexing command. Linear scale feedback is standard on the X, Y & Z axes, as well as the tilting and rotary axes.
The trunnion design allows for maximum stiffness and flexibility with the ability to position the work piece closer to the spindle.
Ideal for 5-axis machining, the Arumatik-Mi CNC promotes super-fast, super smooth control processing for faster machining of complex workpieces.
