Horizontal Machining Centers

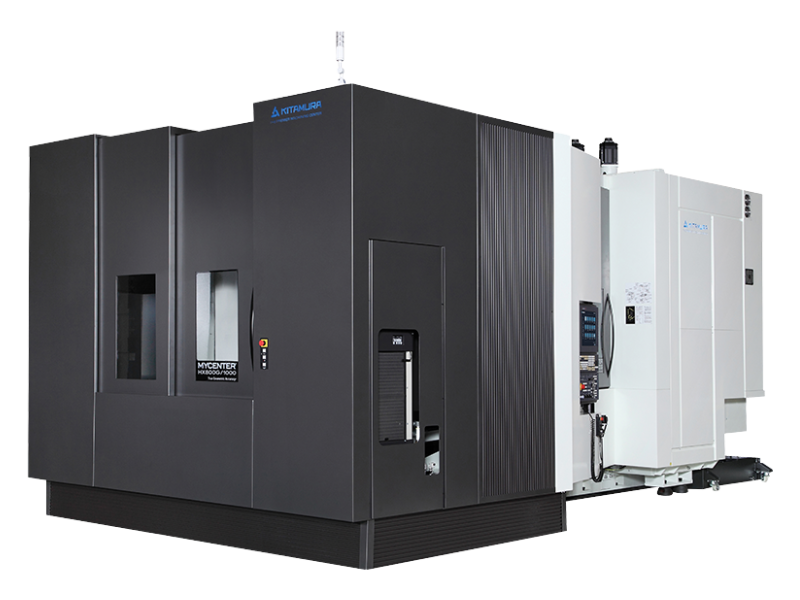

Mycenter-HX800G/1000
| Specification | Details |
|---|---|
| Table Size | (800 × 800mm) 31.5” × 31.5” |
| Travel (X, Y, Z) | (1570 × 1300 × 1400mm) 61.8” × 51.2” × 55.1” |
| Spindle Taper | NST No. 50 (HSK-A100 Opt.) |
| Spindle Speed | 35~12,000 min⁻¹ — 8,000 min⁻¹ Option 4-Step Gear Driven |
| Tool Storage Capacity | 62 Pcs. – 122, 162, 212 Tools Optional |
| Tool Change Time (T–T / C–C) | 2.1 Sec. / 5.9 Sec. Minimum |
| Rapid Feed (X, Y, Z) | 60 m/min (2,362 ipm) |
| Rapid Feed (B) | 25 min⁻¹ (9,000 deg./min) |
| Power Requirement | 70 KVA, 200V AC, 3 Phase |
