Horizontal Machining Centers

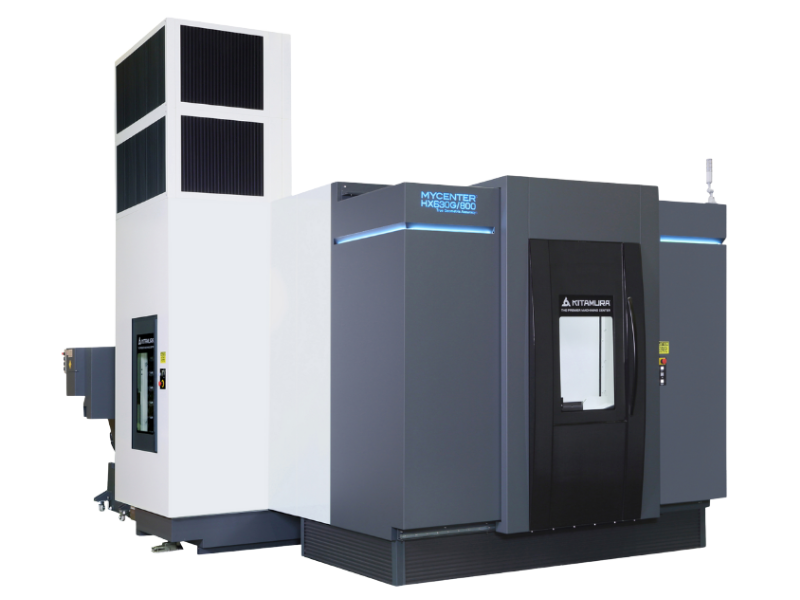

Mycenter-HX630G/800 #40
| Specification | Details |
|---|---|
| Table Size | (630 × 630mm) 24.8” × 24.8” |
| Travel (X, Y, Z) | (1,100 × 920 × 1,050mm) 43.3” × 36.2” × 41.3” |
| Spindle Taper | NST No. 40 (HSK-A63 Opt.) |
| Spindle Speed | 20~20,000 min⁻¹ 4-Step Gear Driven |
| Tool Storage Capacity | 50 Pcs. – 62, 100, 150, 200, 300 Tools Optional |
| Tool Change Time (T–T / C–C) | 1.3 Sec. / 3.8 Sec. Minimum |
| Rapid Feed (X, Y, Z) | 60 m/min (2,362 ipm) |
| Rapid Feed (B) | 12,000 deg./min (33.3 rpm) |
| Power Requirement | 65 KVA, 200V AC, 3 Phase |
