Horizontal Machining Centers

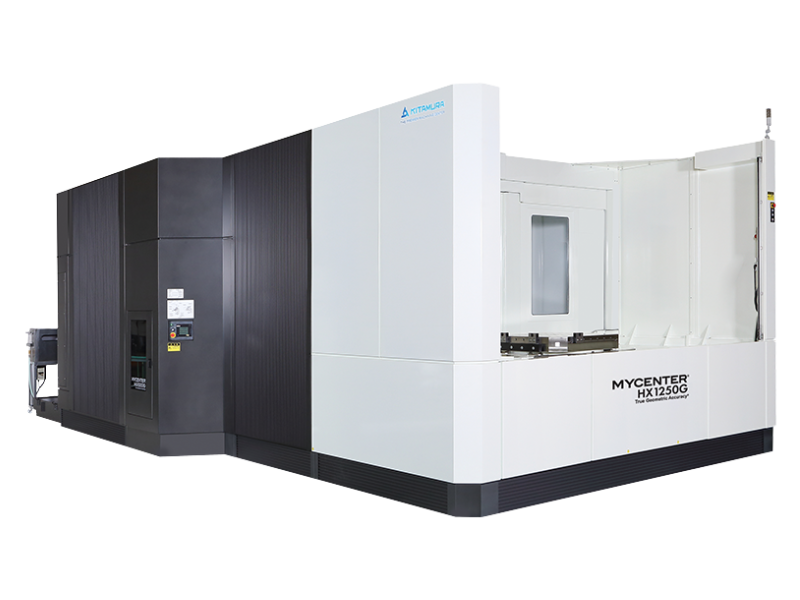

Mycenter-HX1250G
| Specification | Details |
|---|---|
| Table Size | (1250 × 1250mm) 49.2” × 49.2” |
| Travel (X, Y, Z) | (2040 × 1350 × 1370mm) 80.3” × 53.1” × 53.9” |
| Spindle Taper | NST No. 50 |
| Spindle Speed | 35~8,000 min⁻¹ — 12,000 min⁻¹ Option 4-Step Gear Driven |
| Tool Storage Capacity | 150 Pcs. – 200 Tools Optional |
| Tool Change Time (T–T / C–C) | 6.7 Sec. / 12 Sec. Minimum |
| Rapid Feed (X, Y, Z) | 36 m/min (1,417 ipm) |
| Rapid Feed (B) | 11.1 min⁻¹ (4,000 deg./min) |
| Power Requirement | 85 KVA, 200V AC, 3 Phase |
