Vertical 3 Axis Machining Centers

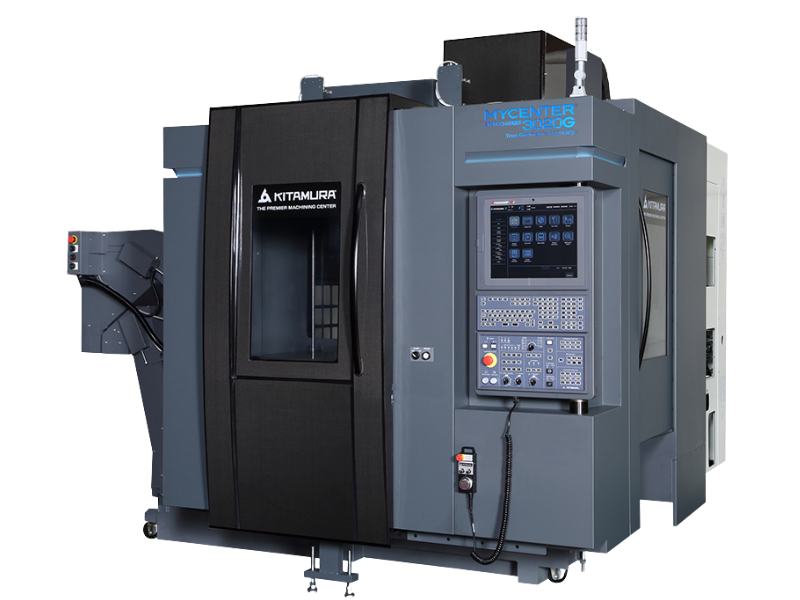

Mycenter-3020G “Sparkchanger”
| Specification | Details |
|---|---|
| Table Size | (500 × 860mm) 19.7” × 33.9” 2-Station Automatic Pallet Changer |
| Travel (X, Y, Z) | (762 × 510 × 510mm) 30” × 20.1” × 20.1” |
| Spindle Taper | NST No. 40 |
| Spindle Speed | 20~20,000 min⁻¹, 4-Step Gear Driven |
| Tool Storage Capacity | 30 Pcs. |
| Tool Change Time (T-T/C-C) | 2.4 Sec. / 4.6 Sec. Minimum |
| Rapid Feed (X, Y, Z) | 50 m/min (1,969 ipm) × 36 m/min (1,417 ipm) |
| Power Requirement | 30 KVA, 200V AC, 3 Phase |
