Vertical 3 Axis Machining Centers

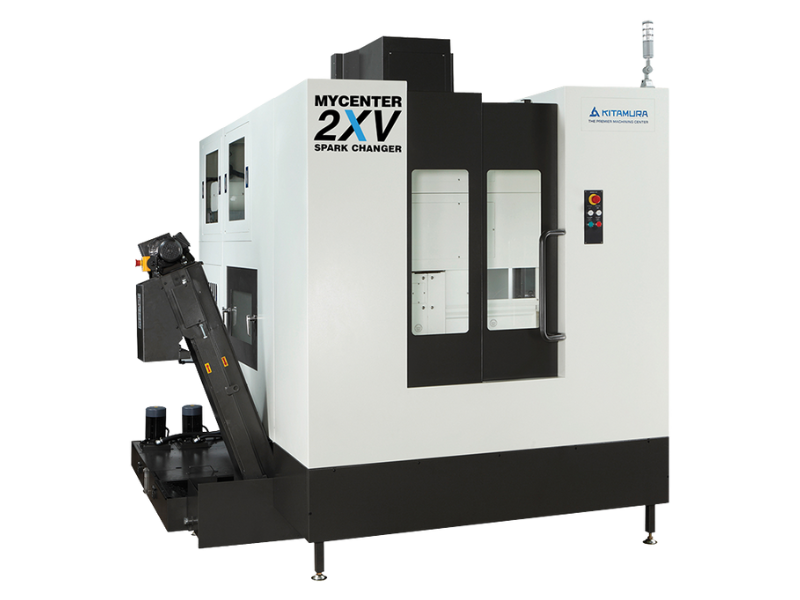

Mycenter-2XV “Sparkchanger”
| Specification | Details |
|---|---|
| Table Size | (400 × 560mm) 15.7” × 22” 2-Station Automatic Pallet Changer |
| Travel (X, Y, Z) | (610 × 510 × 510mm) 23.6” × 20.1” × 20.1” |
| Spindle Taper | NST No. 40 |
| Spindle Speed | 50~15,000 min⁻¹ |
| Tool Storage Capacity | 40 Pcs. |
| Tool Change Time (T-T/C-C) | 2.2 Sec. /4.2 Sec. Minimum |
| APC Change Time | 11.4 Sec. |
| Rapid Feed (X,Y,Z) | 52m/min (2,047ipm) × 42m/min (1,890ipm) |
| Power Requirement | 30KVA, 200v AC, 3 Phase |
