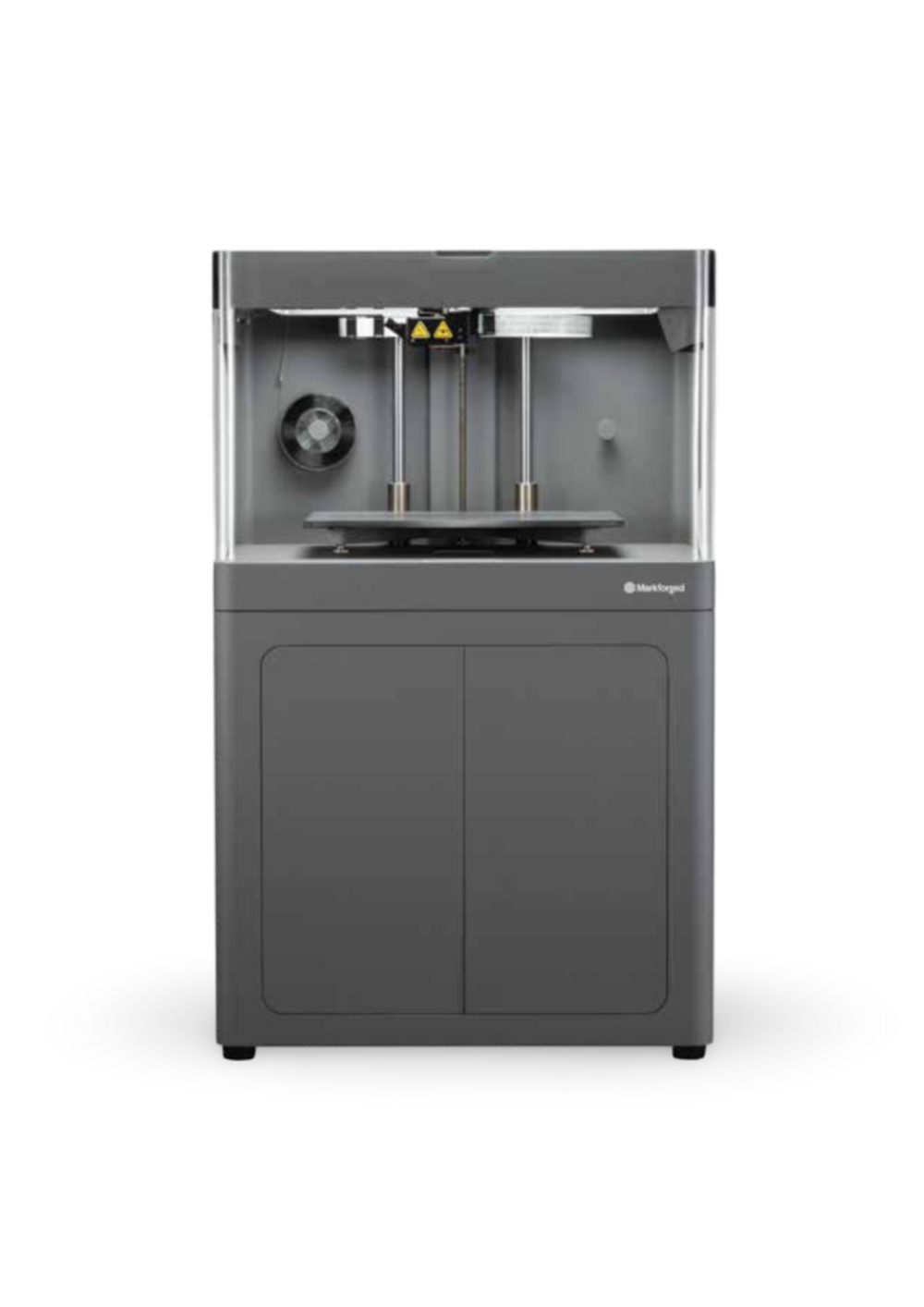

Markforged X7

Quantity

Description:

The X7 prints industrial-grade manufacturing jigs, jaws, tools, fixtures, and end-use parts. Designed from the ground up to survive the production floor environment and capable of printing parts stronger than machined aluminum for a fraction of the cost, the X7 delivers unparalleled surface finish, build size, and reliability. Accelerate part production with Turbo Print, our fastest print mode — only available on the X7.

Printer Properties
Process	Fused filament fabrication, Continuous Filament Fabrication
Build Volume	330 x 270 x 200 mm (13 x 10.6 x 7.9 in)
Weight	48 kg (106 lbs)
Print Bed	584 x 483 x 914 mm (23 x 19 x 36 in)
Machine Footprint	Kinematic coupling — flat to within 80 µm
Laser	In-process inspection, active print calibration, bed leveling
Extrusion System	2nd generation extruder, out-of-plastic & out-of-fiber detection
Power	100–240 VAC, 150 W (2 A peak)
RF Module	Operating Band 2.4 GHz Wi-Fi Standards 802.11 b/g/n
Materials
Plastics Available	Onyx, Onyx FR, Nylon White
Fibers Available	Carbon fiber, Fiberglass, Kevlar®, HSHT fiberglass
Tensile Strength	800 MPa (25.8x ABS, 22.2x Onyx) *
Flex Modulus	51 GPa (24.8x ABS, 14.2x Onyx) *
Part Properties
Layer Height	100 µm default, 50 µm minimum, 250 µm maximum
Infill	Closed cell infill: multiple geometries available
Software
Supplied Software	Eiger Cloud (Other options available at cost)
Security	Two-factor authentication, org admin access, single sign-on
