FDM

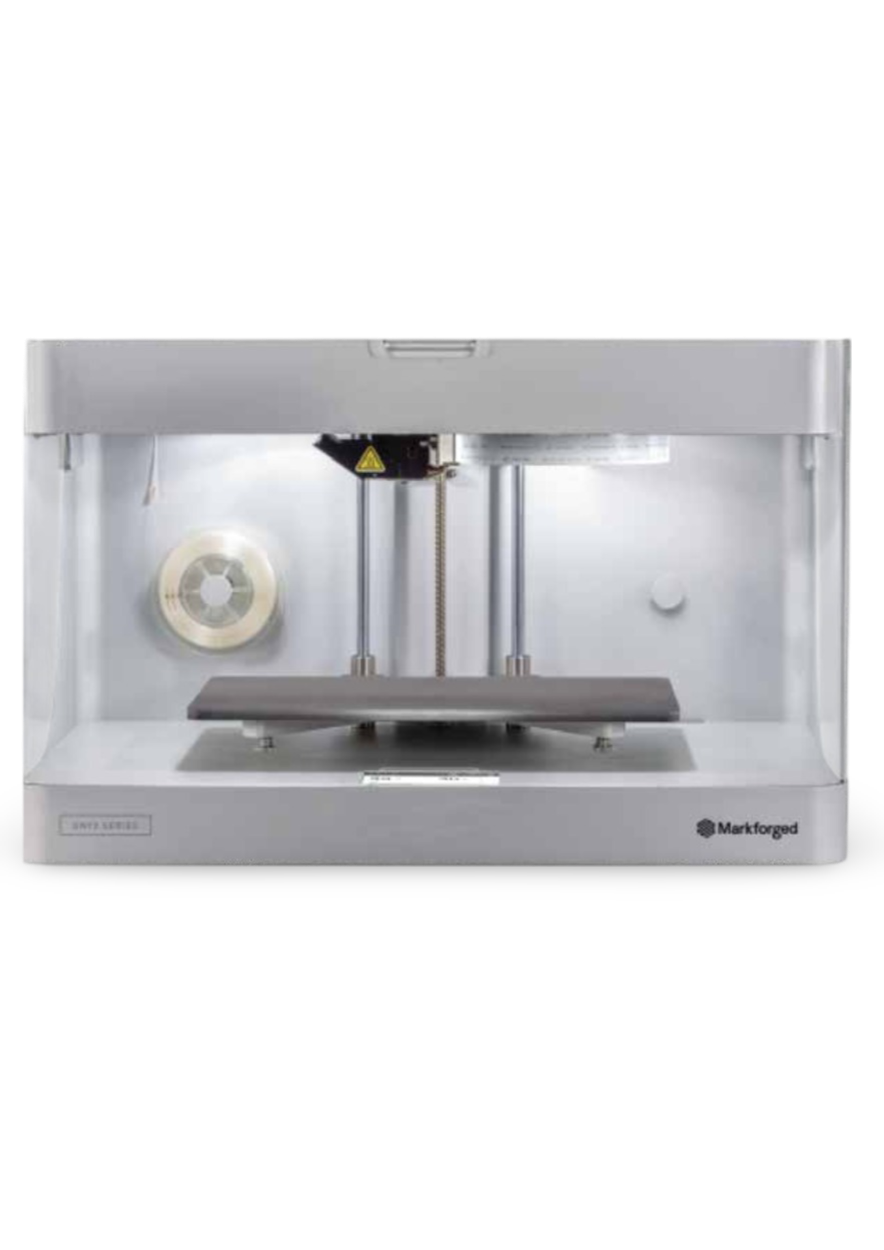

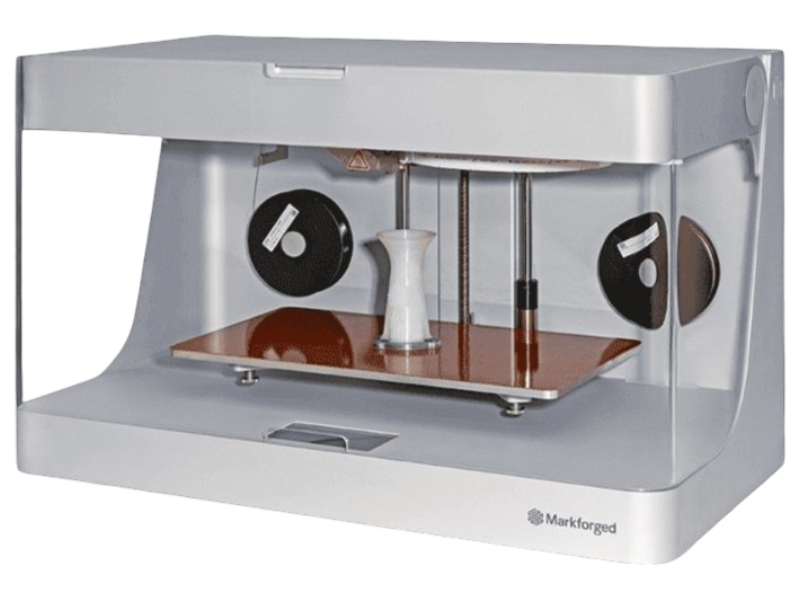

Markforged Onyx Pro
| Specification | ||
|---|---|---|
| Process | Fused filament fabrication, Continuous Filament Fabrication | |
| Build Volume | 320 x 132 x 154 mm (12.6 x 5.2 x 6 in) | |
| Weight | 16 kg (35 lbs) | |
| Machine Footprint | 584 x 330 x 355 mm (23 x 13 x 14 in) | |
| Print Bed | Kinematic coupling — flat to within 160 µm | |
| Extrusion System | Second-generation extruder, out-of-plastic detection | |
| Power | 100–240 VAC, 150 W (2 A peak) | |
| RF Module | Operating Band 2.4 GHz Wi-Fi Standards 802.11 b/g/n | |
| Materials | ||
| Plastics Available | Onyx | |
| Fibers Available | Fiberglass | |
| Tensile Strength | 590 MPa (19.0x ABS, 1.9x 6061-T6 Aluminum) * | |
| Tensile Modulus | 21 GPa (9.4x ABS, 0.3x 6061-T6 Aluminum) * | |
| Part Properties | ||
| Layer Height | 100 µm default, 200 µm maximum | |
| Infill | Closed cell infill: multiple geometries available | |
| Software | ||
| Supplied Software | Eiger Cloud (Other options available at cost) | |
| Security | Two-factor authentication, org admin access, single sign-on | |
