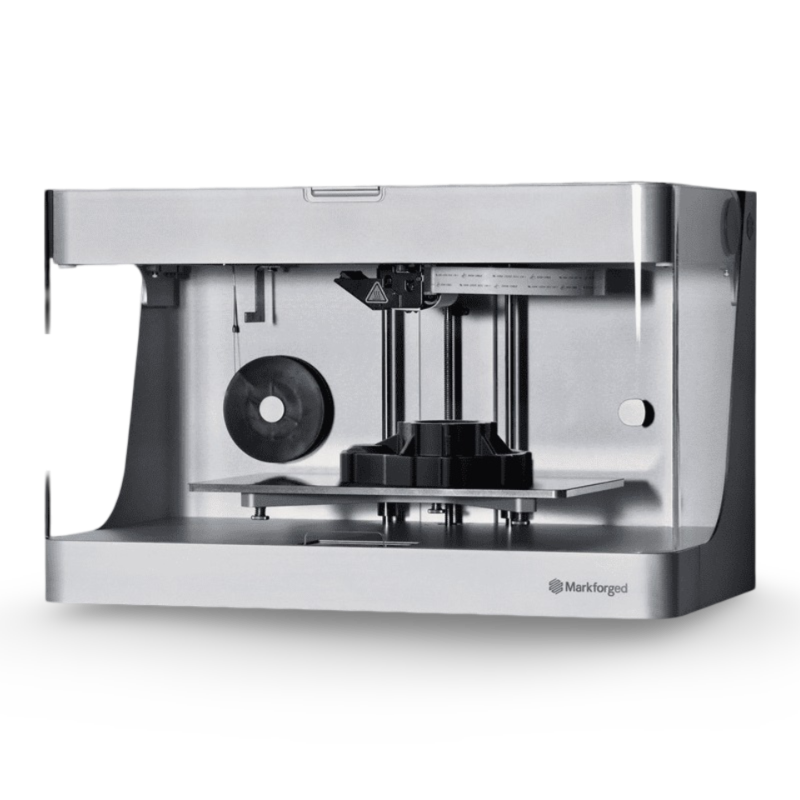

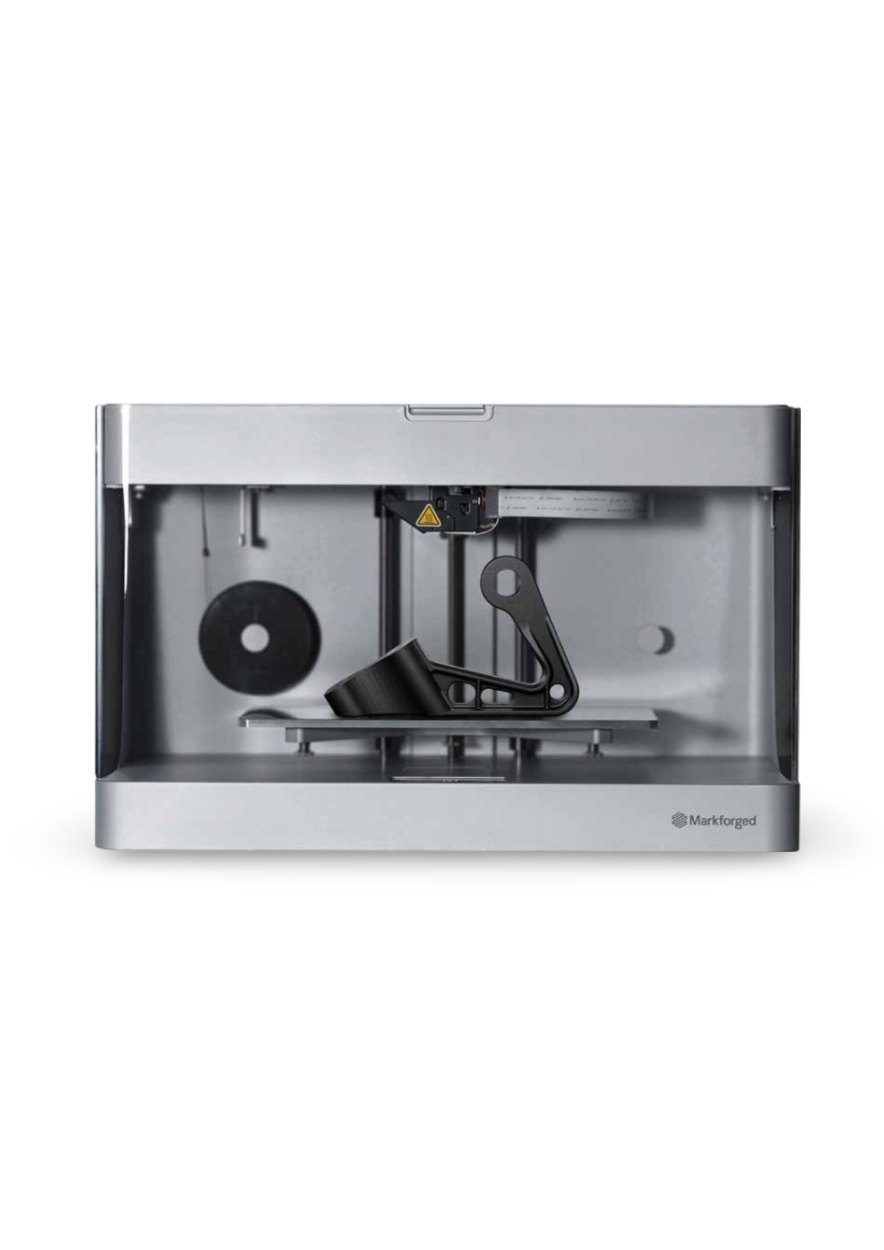

Markforged Mark-Two

Quantity

Description:

Replace machined aluminum tooling—jigs, jaws, and fixtures—with stronger parts for a fraction of the price. The Mark Two combines our unique continuous carbon fiber reinforcement with workhorse reliability for versatile parts with 26x the strength of ABS, ready same-day for use straight off the printer.

Printer Properties
Process	Fused filament fabrication, Continuous Filament Fabrication
Build Volume	320 x 132 x 154 mm (12.6 x 5.2 x 6 in)
Weight	16 kg (35 lbs)
Machine Footprint	584 x 330 x 355 mm (23 x 13 x 14 in)
Print Bed	Kinematic coupling — flat to within 160 µm
Extrusion System	Second-generation extruder, out-of-plastic detection
Power	100–240 VAC, 150 W (2 A peak)
RF Module	Operating Band 2.4 GHz Wi-Fi Standards 802.11 b/g/n
Materials
Plastics Available	Onyx, Nylon White
Fibers Available	Carbon fiber, fiberglass, Kevlar®, HSHT fiberglass
Tensile Strength	800 MPa (25.8x ABS, 22.2x Onyx) *
Flex Modulus	51 GPa (24.8x ABS, 14.2x Onyx) *
Part Properties
Layer Height	100 µm default, 200 µm maximum
Infill	Closed cell infill: multiple geometries available
Software
Supplied Software	Eiger Cloud (Other options available at cost)
Security	Two-factor authentication, org admin access, single sign-on
