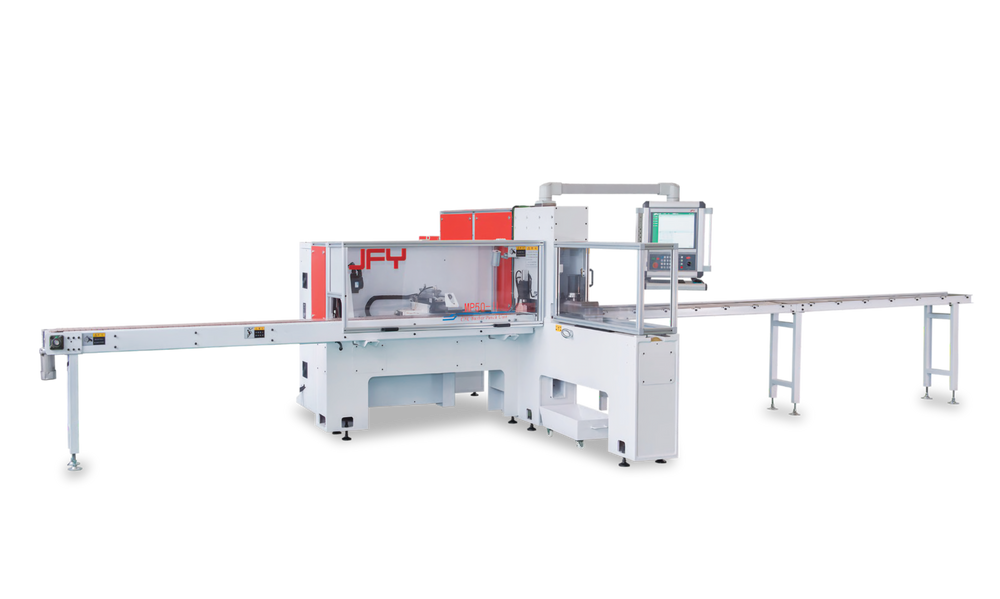

The JFY MP50 Series is a professional CNC busbar punching machine designed for the precision processing of copper and aluminium busbars used in switchgear manufacturing, transformer production, power distribution panels, and high-voltage electrical enclosures. It performs three operations from a single workstation: punching, cutting, and embossing eliminating the need to reposition busbars between processing steps.
With a 500 kN nominal punching force, a compact T-shaped hydraulic design, and a maximum punching frequency of 120 holes per minute, the MP50 is engineered for high-throughput busbar fabrication environments. The machine supports copper busbars up to 15 mm thick and steel busbars up to 10 mm thick, with a maximum punching diameter of 35 mm and workpiece lengths up to 6,000 mm.
Available in India through Phillips Machine Tools, the JFY MP50 is backed by a dense local service network offering on-site technical support.
Key Features & Advantages
● 500 kN Punching Force: High nominal force for clean-edge punching through thick copper (15 mm) and steel (10 mm) busbars without material distortion.
● 7+1 Multi-Station Design: Up to 9 active tool stations enable punching, cutting, and embossing in a single setup — reducing cycle time and handling errors.
● ±0.1 mm Positional Accuracy: 3-axis CNC servo control with automatic pitch compensation delivers repeatable accuracy across the full 6-meter workpiece range.
● Low-Noise Hydraulic Station: High-frequency, low-noise, low-oil-temperature hydraulic workstation ensures stable output for continuous production shifts.
● 120 HPM Punching Speed: Up to 120 holes per minute at maximum punching frequency ideal for high-volume busbar fabrication in panel board manufacturing.
● Embossing Capability: Integrated embossing station with up to 160 × 80 mm² area marks, labels, and forms busbar surfaces in a single machine pass.
Industries & Applications
- Switchgear Manufacturing
- Transformer Production
- Power Distribution Units (PDU)
- MCC & PCC Panel Fabrication
- HV/MV Switchboard Assembly
- Electrical Control Cabinets
- Busway & Busduct Systems
- Marine & Shipbuilding Electrical
- Renewable Energy Infrastructure
- Industrial Automation Panels
