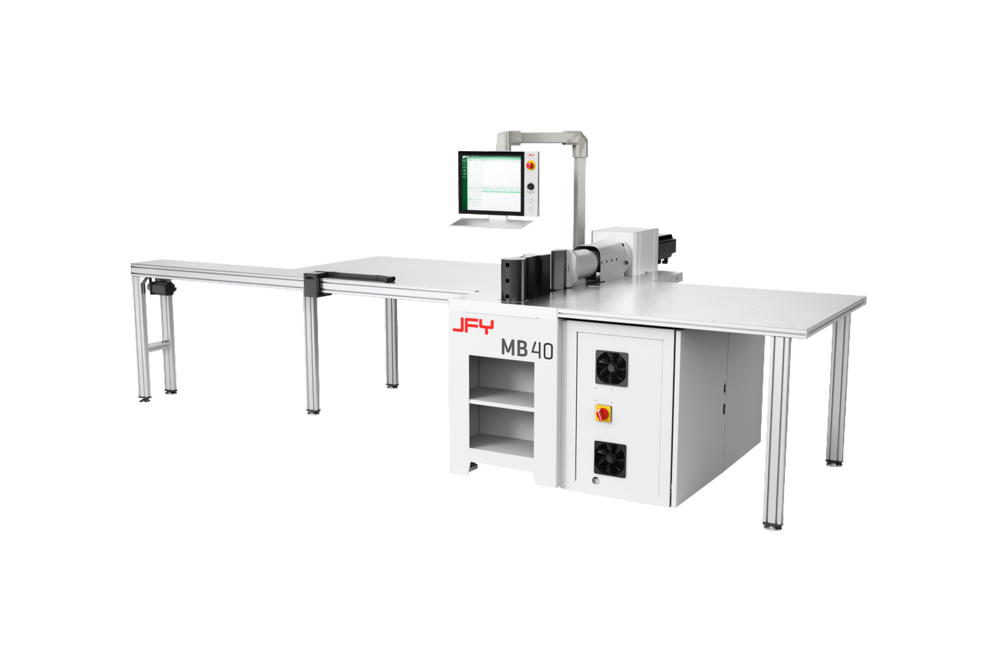

The JFY MB40 Series is a high-precision servo-driven CNC busbar bending machine designed for the accurate forming of copper and aluminium busbars into complex profiles required by switchgear, transformer, and electrical panel manufacturers. Unlike conventional hydraulic busbar benders, the MB40 uses a servo motor main drive paired with an electronic angle measurement and compensation system to achieve a repeatable bending accuracy of ±0.2 mm across all bending modes.
The MB40 supports four bending types from a single machine: flat bending, vertical bending, twist bending, and U-shaped bending — covering virtually every busbar geometry encountered in MCC panels, PCC panels, busducts, transformer terminals, and power distribution boards. Its comprehensive built-in software enables individual part programming, automatic nesting, and full batch production management, making it easy to operate even for first-time users.
Sold in India by Phillips Machine Tools with local commissioning and on-site service support.
Key Features & Advantages
● ±0.2 mm Bending Accuracy: Servo motor drive with electronic angle measurement and automatic angle compensation guarantees precise, repeatable bends at production speeds.
● 4 Bending Modes: Flat bending, vertical bending, twist bending, and U-shaped bending all programmable from a single software interface without tooling changeovers.
● Integrated CNC Software: Built-in software with individual part programming, automatic nesting, and batch management. Reduces programming time and minimises operator errors.
● 2,000 mm Back Gauge Stroke: Long back gauge travel enables precise bend placement on extended busbars critical for transformer and busway connection applications.
● Servo Motor Drive: Unlike conventional hydraulic busbar benders, the MB40's servo drive provides adjustable working speed (0–13 mm/s) and 50 mm/s rapid return higher throughput with lower energy use.
● Compact Footprint: 4,300 × 2,200 × 2,690 mm machine envelope is optimized for workshop floor space. Suitable for panel shop environments with limited space.
Industries & Applications
- Switchgear & Switchboard Manufacturing
- Transformer Terminal Connections
- MCC / PCC Panel Fabrication
- Busway & Busduct Systems
- High Voltage Electrical Equipment
- Electric Vehicle Charging Infrastructure
- Ship & Marine Electrical Panels
- Solar & Wind Power Distribution
- Industrial Automation Cabinets
- Data Centre Power Distribution
