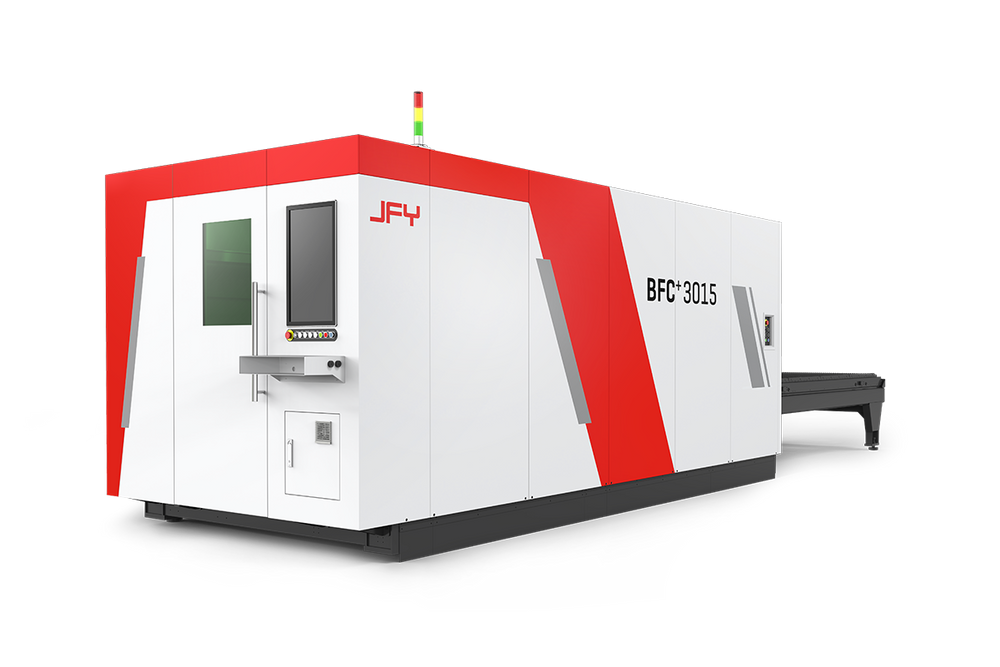

JFY - BFC+ Series CNC Laser Cutting Machine

1
JFY - BFC+ Series CNC Laser Cutting Machine
JFY - BFC+ Series CNC Laser Cutting Machine JFY - BFC+ Series CNC Laser Cutting Machine JFY - BFC+ Series CNC Laser Cutting Machine JFY - BFC+ Series CNC Laser Cutting Machine

Item Unit BFC3015+ BFC4020+ BFC6020+
X-axis mm 3050 4050 6050
Y-axis mm 1545 2050 2050
Z-axis mm 260 260 260
Workpiece
Max. weight [up to 6KU] kg 900 1600 2350
Max. Speed
Max. acceleration g 1.7 1.7 1.7
Max. positioning speed m/min 140 140 140
Accuracy
Positioning deviation mm/m ±0.03 ±0.03 ±0.03
Average positioning mm ±0.03 ±0.03 ±0.03
Cutting accuracy mm/m ±0.01 ±0.01 ±0.01
Machine Performance
CNC Control   FSCUT 4000 FSCUT 4000 FSCUT 4000
Time of table exchange sec 10 13 16
Machine net weight kg 8000 10000 13000
Laser Data
Max. Power w 3000 4000 6000
Cutting head   Precitec LM Precitec LM Precitec PC
Wavelength um 1071 ± 2 1071 ± 2 1071 ± 2
Output Type   QBH QBH QBH
Output fiber optic diameter um 100 100 100
Max. Sheet Thickness
Mild Steel mm 22 22 25
Stainless Steel mm 16 20 25
Aluminum mm 12 20 20
Copper mm – – 20
Brass mm 10 10 10
