7 Axis

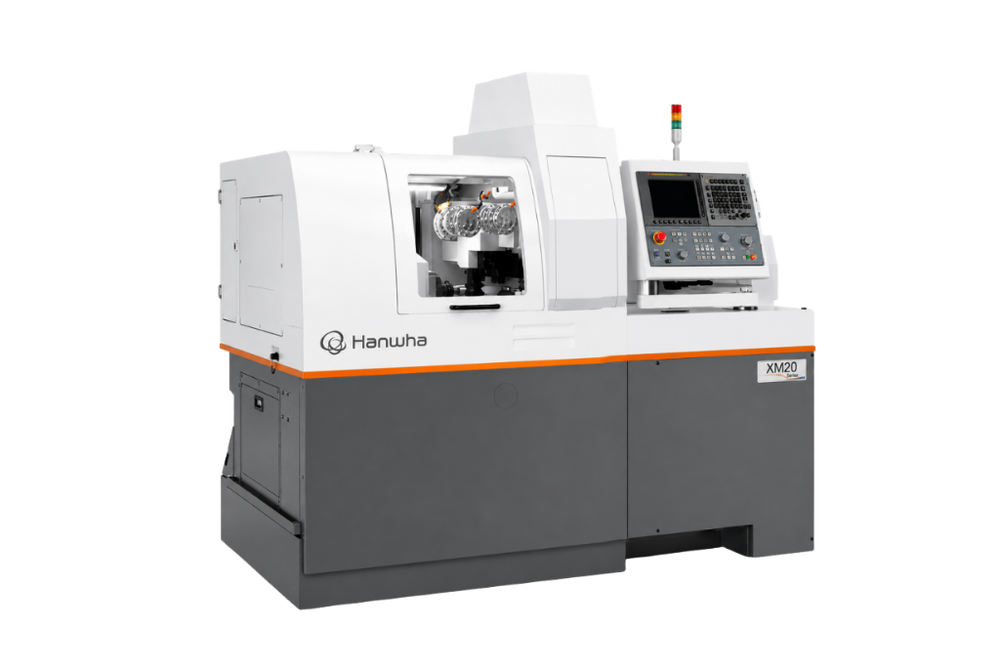

XM 20
| Parameter | XM20 Y2 | XM20 Y2+B |
|---|---|---|
| NC | Fanuc 32i-B Plus | Fanuc 32i-B Plus |
| Max. Machining Diameter | Ø20 mm (Option: Ø25 mm) | Ø20 mm (Option: Ø25 mm) |
| Z1 Stroke | 205 mm (H), 55 mm (S) | 205 mm (H), 55 mm (S) |
| Chuck G/B | TF25 / TF25 / TD25-NS | TF25 / TF25 / TD25-NS |
| Main Spindle Speed | 10,000 rpm | 10,000 rpm |
| Main Spindle Motor | 2.2 / 3.7 kW | 2.2 / 3.7 kW |
| OD Tool Capacity | 6 Tools (Ø12 mm) | 6 Tools (Ø12 mm) |
| Front Tool Capacity | 3 Tools (ER16) | 3 Tools (ER16) |
| Cross Drill Capacity | 7 (4+3) Tools (ER16) | 3 Tools (ER16) |
| Cross Drill Speed | 6,000 rpm | 6,000 rpm |
| Cross Drill Motor | 2.5 kW | 2.5 kW |
| B-Axis Tool Capacity | - | 8 Tools (ER11) |
| B-Axis Speed | - | 8,000 rpm |
| Sub Spindle Speed | 10,000 rpm | 10,000 rpm |
| Sub Spindle Motor | 2.2 / 3.7 kW | 2.2 / 3.7 kW |
| Back Tool Capacity | 8 Tools (4 Fixed + 4 Driven) | 8 Tools (4 Fixed + 4 Driven) |
| Back Tool Speed | 9,000 rpm | 9,000 rpm |
| Back Tool Motor | 1.0 kW | 1.0 kW |
| Machine Size (L × W × H) | 2,160 × 1,200 × 1,900 mm | 2,160 × 1,200 × 1,900 mm |
| Weight | 2,950 kg | 3,000 kg |
| Feed X1 Motor | 1.7 kW | 1.7 kW |
| Feed Other Motor | 1.0 kW | 1.0 kW |
| Power Consumption | 3 kVA (Rated: 7 kVA) (10SQ) | 3 kVA (Rated: 7 kVA) (10SQ) |
| Air Flow Rate | 62 L/min | 62 L/min |
