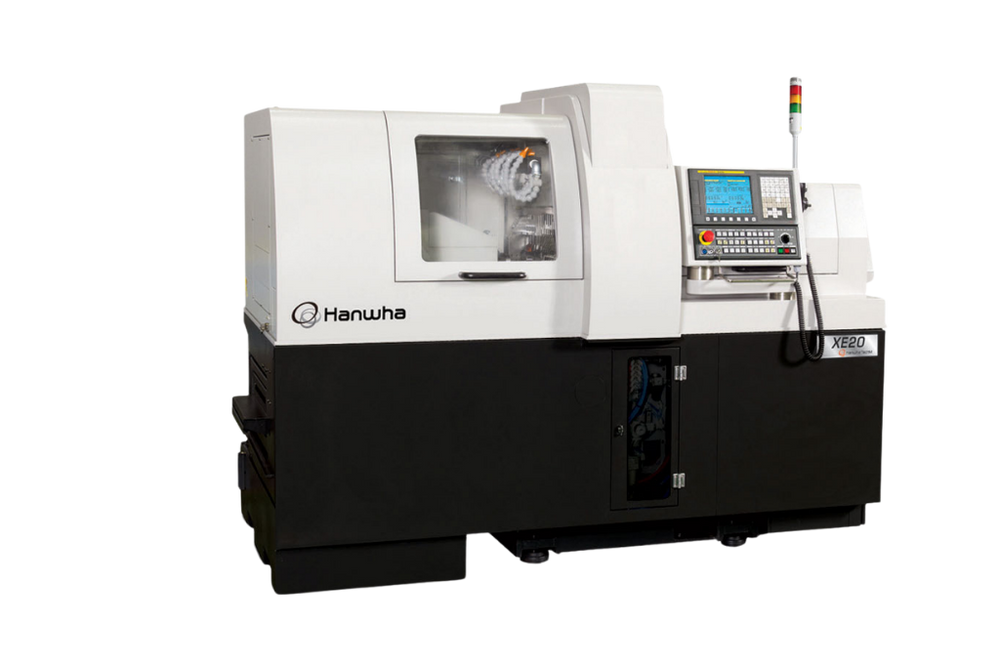

XE-20/26
| Parameter | XE20/26 H | XE20/26 NH |
|---|---|---|
| NC | Hanwha Fanuc-i | Hanwha Fanuc-i |
| Max. Machining Diameter | Ø20 / 26 mm | Ø20 / 26 mm |
| Z1 Stroke | 210 mm | 160 mm (H), 50 mm (N) |
| Chuck G/B | Ø20: TF25 / TF25 / TD25-NS | Ø20: TF25 / TF25 / TD25-NS |
| Main/Sub Guide | Ø26: TS32 / TS32 / CD25 | Ø26: TS32 / TS32 / CD25 |
| Main Spindle Speed | 10,000 rpm (Ø20), 8,000 rpm (Ø26) | 10,000 rpm (Ø20), 8,000 rpm (Ø26) |
| Main Spindle Motor | 2.2 / 3.7 kW (Ø20), 2.2 / 5.5 kW (Ø26) | 2.2 / 3.7 kW (Ø20), 2.2 / 5.5 kW (Ø26) |
| OD Tool Capacity | 6 Tools (Ø12 mm) (Ø20), 5 Tools (Ø16 mm) (Ø26) | |
| Front Tool Capacity | 5 Tools (ER16M, Ø25) | |
| Cross Drill Capacity | 4 Tools (ER16) | |
| Cross Drill Speed | 6,000 rpm | |
| Cross Drill Motor | 1.0 kW | |
| Off-Center Drill (Optional) | 2 Tools (ER16) | |
| Sub Spindle Speed | 8,000 rpm | |
| Sub Spindle Motor | 1.5 / 2.2 kW | |
| Back Tool Capacity | 4 Tools (ER16) (2 Fixed + 2 Driven) | |
| Back Tool Speed | 6,000 rpm | |
| Back Tool Motor | 1.0 kW | |
| Machine Size (L × W × H) | 2,260 × 1,240 × 1,670 mm | |
| Weight | 2,500 kg | |
| Power Consumption | 2.2 kVA (Rated: 6.9 kVA) (10SQ) | |
| Air Flow Rate | 120–150 L/min | |
