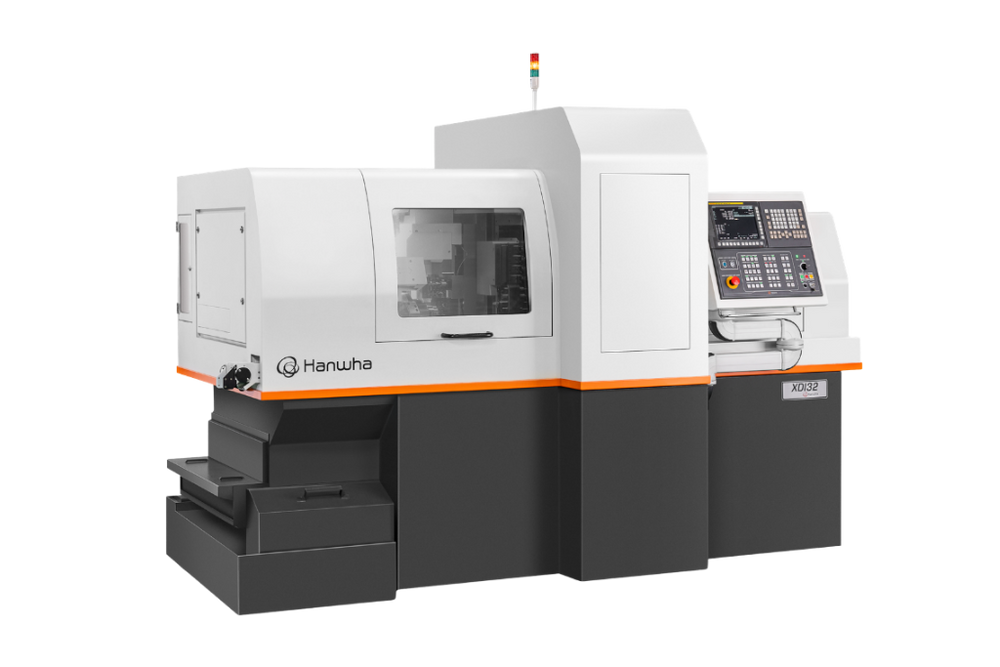

XDI26/32
| Parameter | XDI 26 | XDI 32 |
|---|---|---|
| NC | Fanuc 31i-B | Fanuc 31i-B |
| Max. Machining Diameter | Ø26 mm | Ø32 mm |
| Z1 Stroke / NH | 350 mm (H), 100 mm (N) | 350 mm (H), 100 mm (N) |
| Main Spindle Speed | 8,000 rpm | 6,500 rpm |
| Main Spindle Motor | 2.2 / 5.5 kW | 2.2 / 5.5 kW |
| Turning Tool Capacity | Ø16 × 7 (4 + 3) | Ø16 × 7 (4 + 3) |
| Front Tool Capacity | ER16M × 4 (Front 4 / Rear 7) | ER16M × 4 (Front 4 / Rear 7) |
| Cross Drill Capacity | ER16 × 7 (4 + 3) | ER16 × 7 (4 + 3) |
| Cross Drill Speed | 6,000 rpm | 6,000 rpm |
| Cross Drill Motor | 1.0 kW | 2.2 kW |
| B-Axis Cross Tool Capacity (Optional) | ER16 × 4 (Front 4 / Rear 4) | ER16 × 4 (Front 4 / Rear 4) |
| B-Axis Cross Speed | 6,000 rpm | 6,000 rpm |
| B-Axis Cross Motor | 1.0 kW | 1.0 kW |
| Sub Spindle Speed | 8,000 rpm | 6,500 rpm |
| Sub Spindle Motor | 2.2 / 5.5 kW | 2.2 / 5.5 kW |
| Back Tool Capacity | ER16 × 9 (Fixed 3 + Driven 6) | ER16 × 9 (Fixed 3 + Driven 6) |
| Back Tool Option | Driven 6 + Cross 3 + Turning 2 | Driven 6 + Cross 3 + Turning 2 |
| Back Tool Speed | 6,000 rpm | 6,000 rpm |
| Back Tool Motor | 1.0 kW | 1.0 kW |
| Machine Size (L × W × H) | 2,910 × 1,710 × 2,010 mm | 2,910 × 1,710 × 2,010 mm |
| Weight | 6,300 kg | 6,300 kg |
| Power Consumption | 34.7 kVA, 28.8 kW (VCTF16SQ × 4C) | 37.4 kVA, 31.2 kW (VCTF16SQ × 4C) |
| Air Flow Rate | 120–150 L/min | 120–150 L/min |
