6 Axis

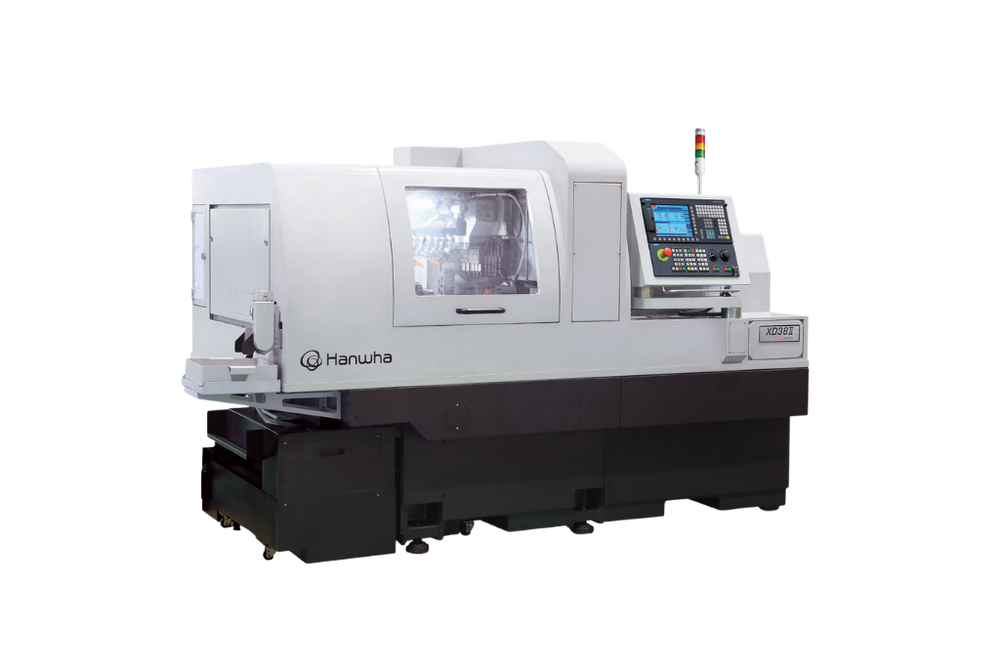

XD38III NH
| Parameter | XD38III NH |
|---|---|
| NC | Fanuc 0i-TF Plus / Siemens 828D |
| Max. Machining Diameter | Ø38 mm (Option: Ø40 mm) |
| Z1 Stroke | 320 mm (H), 120 mm (N) |
| Chuck G/B | TF48 / TF48 / BRA42 |
| Main Spindle Speed | 6,500 rpm |
| Main Spindle Motor | 5.5 / 7.5 kW (Fanuc), 23 kW (Siemens) |
| OD Tool Capacity | 5 Tools (Ø20 mm × 2, Ø16 mm × 3) / 6 Tools (Ø16 mm × 6) |
| Front Tool Capacity | 10 Tools (Front 5, Back 5) |
| Cross Drill Capacity | 6 Tools (ER16 × 6), 6 Tools (ER20 × 2, ER16 × 4) |
| Cross Drill Speed | 6,000 rpm |
| Cross Drill Motor | 2.2 kW (Fanuc), 2.13 kW (Siemens) |
| Off-Center Drill (Optional) | 2 Tools (ER16) Modular |
| Sub Spindle Speed | 6,500 rpm |
| Sub Spindle Motor | 2.2 / 5.5 kW (Fanuc Built-in), 1.1 / 3.7 kW (Fanuc Servo), 23 kW (Siemens) |
| Back Tool Capacity | 5 Back Tools (3 Fixed + 2 Driven), 2 Cross (ER16), 2 Turning (Ø16) |
| Back Tool Speed | 6,000 rpm |
| Back Tool Motor | 1.0 kW (Fanuc), 2.13 kW (Siemens) |
| Machine Size (L × W × H) | 2,690 × 1,580 × 1,820 mm (F) / 3,100 × 1,650 × 1,820 mm (S) |
| Weight | 4,690 kg |
| Power Consumption | 3.7 kVA (Rated: 14.6 kVA) (16SQ) |
| Siemens Power Consumption | 5.4 kVA (Rated: 36 kVA) |
| Air Flow Rate | 120–150 L/min |
