6 Axis

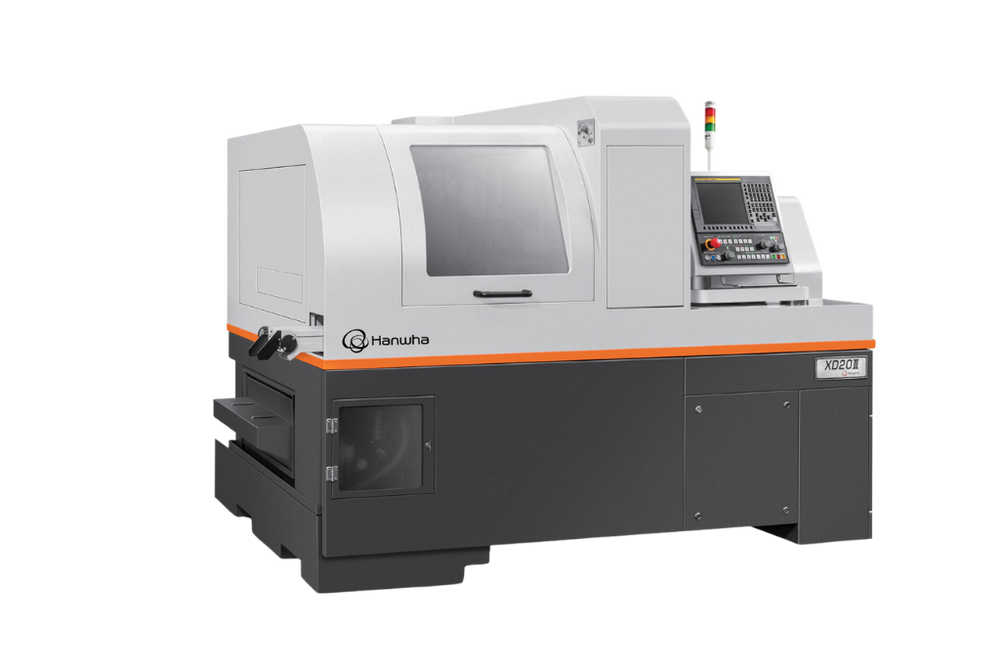

XD20/26III NH
| Parameter | XD20/26III NH |
|---|---|
| NC | Hanwha Fanuc-i / Siemens 828D |
| Max. Machining Diameter | Ø20 / 26 mm |
| Z1 Stroke | H: 240 mm, N: 60 mm (Ø20), 80 mm (Ø26) |
| Chuck G/B | Ø20: TF25 / TF25 / TD25-NS Ø26: TF32 / TF32 / CD25 |
| Main Spindle Speed | 10,000 rpm (Ø20), 8,000 rpm (Ø26) |
| Main Spindle Motor | Fanuc: 2.2 / 3.7 kW (Ø20), 2.2 / 5.5 kW (Ø26); Siemens: 16 kW |
| OD Tool Capacity | 6 Tools (Ø12 mm) (Ø20), 5 Tools (Ø16 mm) (Ø26) |
| Front Tool Capacity | 5 Tools (ER16M, Ø25) |
| Cross Drill Capacity | 5 Tools (ER16) (Ø20), 5 Tools (ER16M) (Ø26) |
| Cross Drill Speed | 6,000 rpm |
| Cross Drill Motor | 1.0 kW (Fanuc), 1.02 kW (Siemens) |
| Off-Center Drill (Optional) | 2 Tools (ER16) |
| Sub Spindle Speed | 8,000 rpm |
| Sub Spindle Motor | 1.5 / 2.2 kW (Fanuc), 2.59 kW (Siemens) |
| Back Tool Capacity | 8 Tools (ER16) (4 Fixed + 4 Driven) |
| Back Tool Speed | 8,000 rpm |
| Back Tool Motor | 1.0 kW (Fanuc), 1.02 kW (Siemens) |
| Machine Size (L × W × H) | 2,460 × 1,290 × 1,750 mm |
| Weight | 3,000 kg |
| Power Consumption | 5.3 kVA (Rated: 9 kVA) (10SQ) |
| Air Flow Rate | 120–150 L/min |
