6 Axis

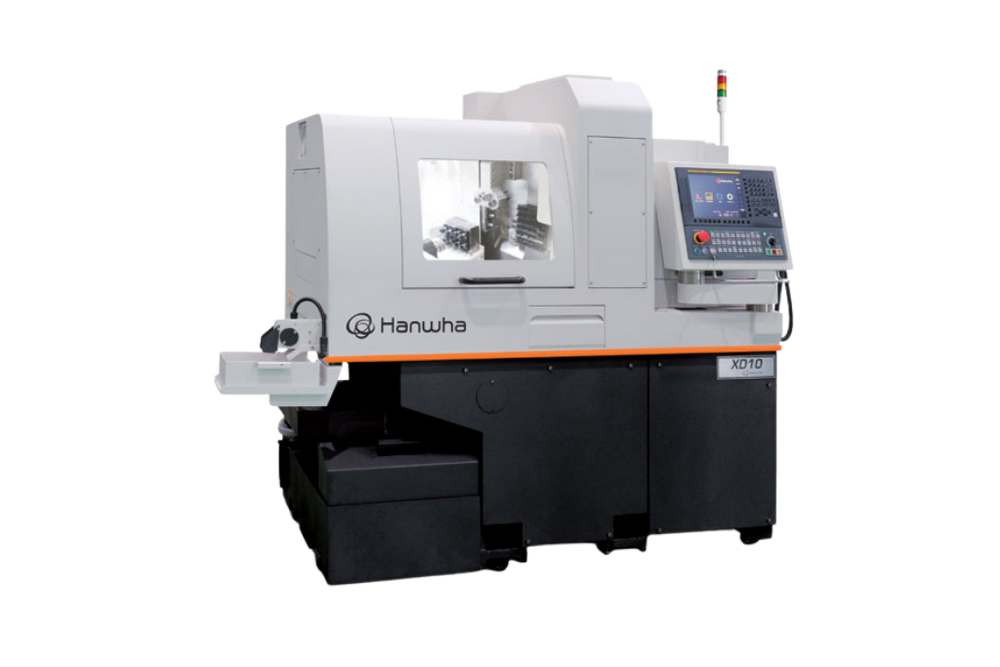

XD10II
| Parameter | XD10II |
|---|---|
| NC | Hanwha Fanuc-i |
| Max. Machining Diameter | Ø10 mm |
| Z1 Stroke | 155 mm |
| Chuck G/B | TF16 / TF16 / SD125R |
| Main Spindle Speed | 15,000 rpm |
| Main Spindle Motor | 2.2 / 3.7 kW |
| Turning Tool Capacity | Ø8 mm × 6 |
| Front Tool Capacity | ER11 × 4 |
| Cross Drill Capacity | ER11M × 4 (Option: ER11M × 5) |
| Cross Drill Speed | 10,000 rpm |
| Cross Drill Motor | 0.55 kW |
| Sub Spindle Speed | 10,000 rpm |
| Sub Spindle Motor | 0.55 / 1.1 kW |
| Back Tool Capacity | ER11 × 8 (Y2: Fixed 4 + Driven 4) |
| Back Tool Option | Fixed 2 + Driven 2 |
| Back Tool Speed | 9,000 rpm |
| Back Tool Motor | 0.55 kW |
| Machine Size (L × W × H) | 1,810 × 970 × 1,850 mm |
| Weight | 2,200 kg |
| Power Consumption | 1.8 kVA (Rated: 5.6 kVA) (10SQ) |
| Air Flow Rate | 120–150 L/min |
