9 Axis

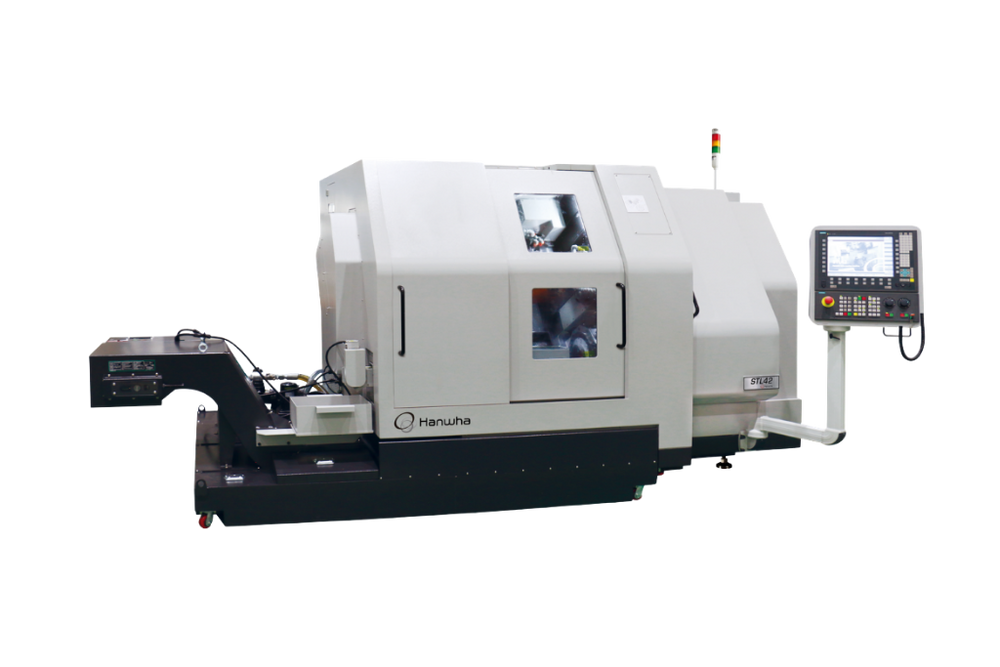

STL42
| Parameter | STL42 |
|---|---|
| NC | Siemens 840D |
| Max. Machining Diameter | Ø42 mm |
| Z1 Stroke | 420 mm (H), 282 mm (NH), 125 mm (N) |
| Chuck G/B | TF48 / TF48 / BRA42 |
| Main Spindle Speed | 6,000 rpm |
| Main Spindle Motor | 22 kW |
| OD Tool Capacity | 5 Tools (Ø20 mm) |
| Cross Drill Capacity | 5 Tools (ER20) |
| Cross Drill Speed | 6,000 rpm |
| Cross Drill Motor | 2.59 kW |
| Turret Unit | 1 Unit (10 Station) |
| Turret Tool Capacity | Max. 30 Tools (Ø20 mm, ER20) |
| Turret Tool Type | VDI 30 (Option: BMT 45) |
| Turret Motor | 2.59 kW |
| Sub Spindle Speed | 6,000 rpm |
| Sub Spindle Motor | 22 kW |
| Back Tool Capacity | 9 Tools (3 Fixed + 6 Driven) |
| Back Tool Speed | 6,000 rpm |
| Back Tool Motor | 2.13 kW |
| Machine Size (L × W × H) | 3,580 × 2,060 × 1,980 mm |
| Weight | 7,330 kg |
| Power Consumption | 7.8 kVA (Rated: 40 kVA) |
| Air Flow Rate | 20–30 L/min |
