9 Axis

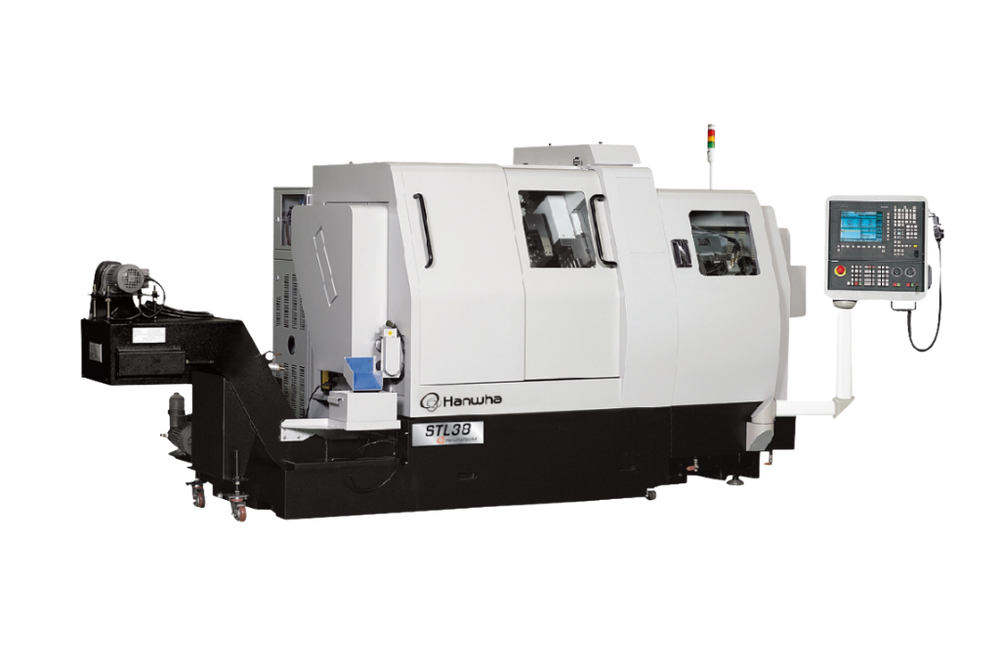

STL38 Y3
| Parameter | STL38 Y3 |
|---|---|
| NC | Siemens 840D |
| Max. Machining Diameter | Ø32 / 38 mm |
| Z1 Stroke | 320 mm |
| Chuck G/B | TF48 / TF48 / HW38 |
| Main Spindle Speed | 6,500 rpm |
| Main Spindle Motor | 23 kW |
| OD Tool Capacity | 5 Tools (Ø16 mm) |
| Cross Drill Capacity | 4 Tools (ER20M) |
| Cross Drill Speed | 6,000 rpm |
| Cross Drill Motor | 1.07 kW |
| Turret Unit | 1 Unit (10 Station) |
| Turret Tool Capacity | Max. 30 Tools (Ø20 mm, ER20) |
| Turret Tool Type | VDI 30 (Option: BMT 45) |
| Turret Motor | 2.59 kW |
| Sub Spindle Speed | 6,500 rpm |
| Sub Spindle Motor | 23 kW |
| Back Tool Capacity | 8 Tools (ER20M) (4 Fixed + 4 Driven) |
| Back Tool Speed | 6,000 rpm |
| Back Tool Motor | 1.07 kW |
| Machine Size (L × W × H) | 3,130 × 1,860 × 1,780 mm |
| Weight | 4,500 kg |
| Power Consumption | 7.7 kVA (Rated: 40 kVA) (16SQ) |
| Air Flow Rate | 20–30 L/min |
