3 axis VMC

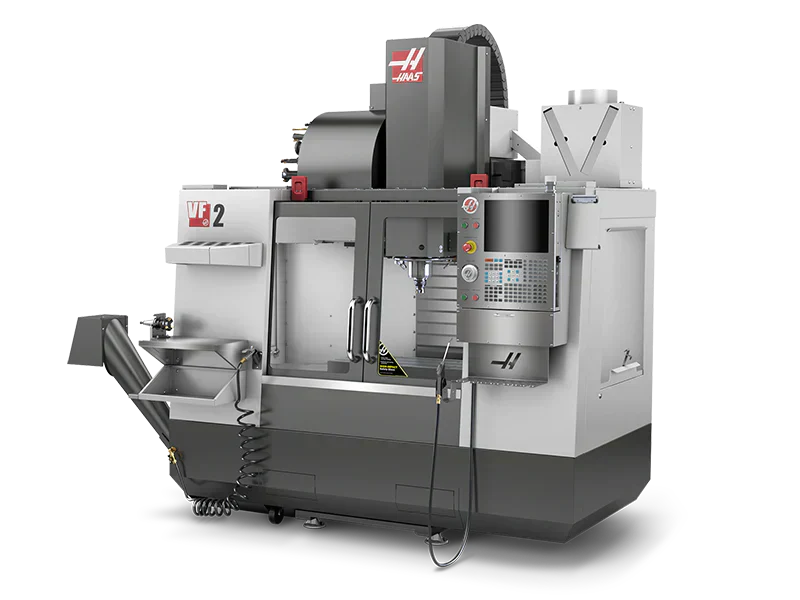

HAAS VF-2-R

Quantity

6 Remaining

Every VF Series vertical machining center provides outstanding features at an excellent price, and features a wide range of available options to customize your machine to your exact needs.

The VF-2 is our most popular model, and the workhorse of any shop.

High-power, direct-drive spindle
Customizable to your needs
Our most popular model

TRAVELS	S.A.E	METRIC
X Axis	30.00 in	762 mm
Y Axis	16.00 in	406 mm
Z Axis	20.00 in	508 mm
Spindle Nose to Table (~ max)	24.0 in	610 mm
Spindle Nose to Table (~ min)	4.0 in	102 mm

SPINDLE	S.A.E	METRIC
Max Rating	20.0 hp	14.9 kW
Max Speed	7500 rpm	7500 rpm
Max Torque	75.0 ft-lbf @ 1400 rpm	102.0 Nm @ 1400 rpm
Max Torque w/opt Gearbox	NA	NA
Drive System	Belt Drive	Belt Drive
Taper	BT40	BT40
Bearing Lubrication	Air / Oil Injection	Air / Oil Injection
Cooling	Liquid Cooled	Liquid Cooled

TABLE	S.A.E	METRIC
Length	36.0 in	914 mm
Width	14.0 in	356 mm
T-Slot Width	5/8 in	16.00 mm
T-Slot Center Distance	4.92 in	125 mm
Number of Std T-Slots	3	3
Max Weight on Table (evenly distributed)	3000 lb	1361 kg

FEEDRATES	S.A.E	METRIC
Max Cutting	650 ipm	16.5 m/min
Rapids on X	1000 ipm	25.4 m/min
Rapids on Y	1000 ipm	25.4 m/min
Rapids on Z	1000 ipm	25.4 m/min

AXIS MOTORS	S.A.E	METRIC
Max Thrust X	2550 lbf	11343 N
Max Thrust Y	2550 lbf	11343 N
Max Thrust Z	4200 lbf	18683 N

TOOL CHANGER	S.A.E	METRIC
Type	Carousel	Carousel
Capacity	20	20
Max Tool Diameter (full)	3.5 in	89 mm
Max Tool Weight	12.0 lb	5.4 kg
Tool-to-Tool (avg)	4.20 s	4.20 s
Chip-to-Chip (avg)	4.50 s	4.50 s

GENERAL	S.A.E	METRIC
Coolant Capacity	55 gal	208 L

AIR REQUIREMENTS	S.A.E	METRIC
Air Required	4 scfm @ 100 psi	113 L/min @ 6.9 bar

ELECTRICAL SPECIFICATION	S.A.E	METRIC
Input AC Voltage (3 Phase) - Low	200 VAC	250 VAC
Input AC Voltage (3 Phase) - High*	380 VAC	480 VAC
