SLS Metal 3D Printing

EOS M 400

1

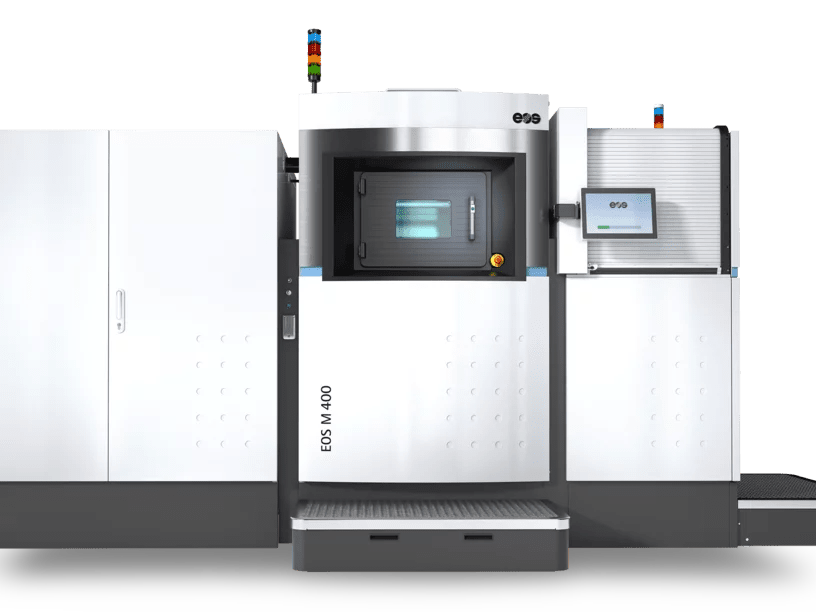

EOS M 400
EOS M 400
Technical Data Details
Build Volume 400 x 400 x 400 mm (15.7 x 15.7 x 15.7 in)
Laser Type Yb-fiber laser; 1 x 1000 W
Precision Optics 1 F-theta-lens(es); 1 High-speed scanner(s)
Scan Speed Up to 7.0 m/s (23.0 ft/s)
Focus Diameter Approx. 90 µm (0.00354 in)
Power Supply 1 x 50 A
Power Consumption Max. 50.2 kW / Typical 16.2 kW
Compressed Air Supply 7 Bar; 20 m³/h (102 psi; 706 ft³/h)
Machine Dimensions 4181 x 1613 x 2355 mm (164.6 x 63.5 x 92.7 in)
Recommended Installation Space Min. 6500 x 6000 x 3300 mm (255.9 x 236.2 x 129.9 in)
Weight Approx. 4635 kg (10218 lbs)
Software EOS BUILD, EOS SYSTEM SUITE
