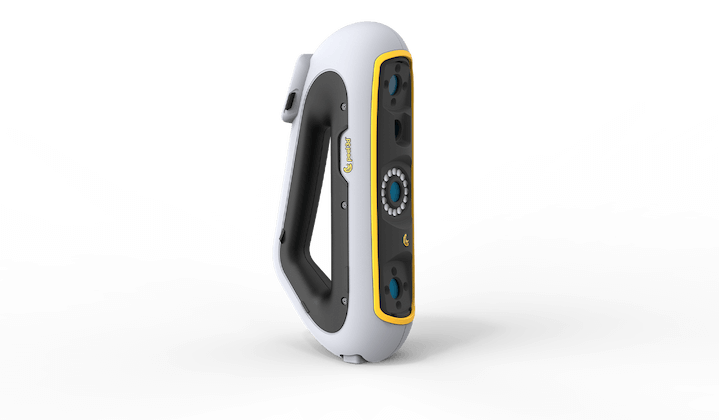

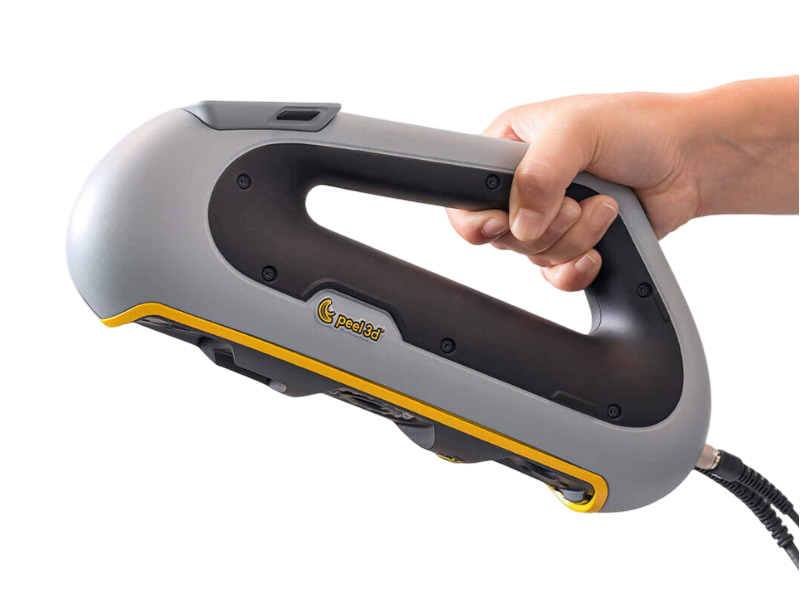

Creaform - Peel 3 3D Scanner

1
Creaform - Peel 3 3D Scanner
Creaform - Peel 3 3D Scanner Creaform - Peel 3 3D Scanner Creaform - Peel 3 3D Scanner Creaform - Peel 3 3D Scanner Creaform - Peel 3 3D Scanner
Feature Specification
Software peel.OS, peel.CAD*
Recommended object size 0.1 - 3.0 m
Accuracy 0.250 mm/m, up to 0.1 mm
Measurement capabilities pin - 1.5 mm, hole - 3.0 mm, step - 0.1 mm, wall - 1.0 mm
Mesh resolution 0.250 mm
Scanning area 340 x 475 mm
Scan speed 80 sec/m²
Usage distance (from object) 250 to 550 mm
Depth of field 300 mm
Projector light source IR VCSEL

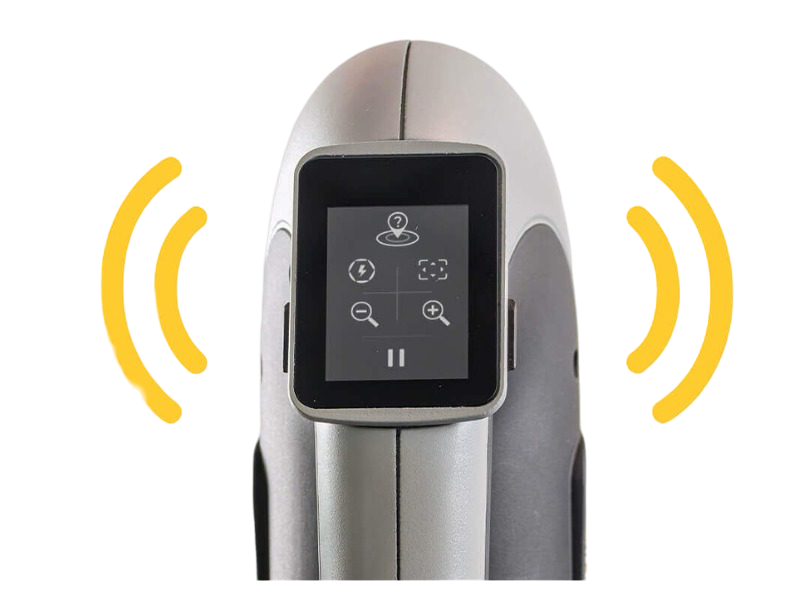

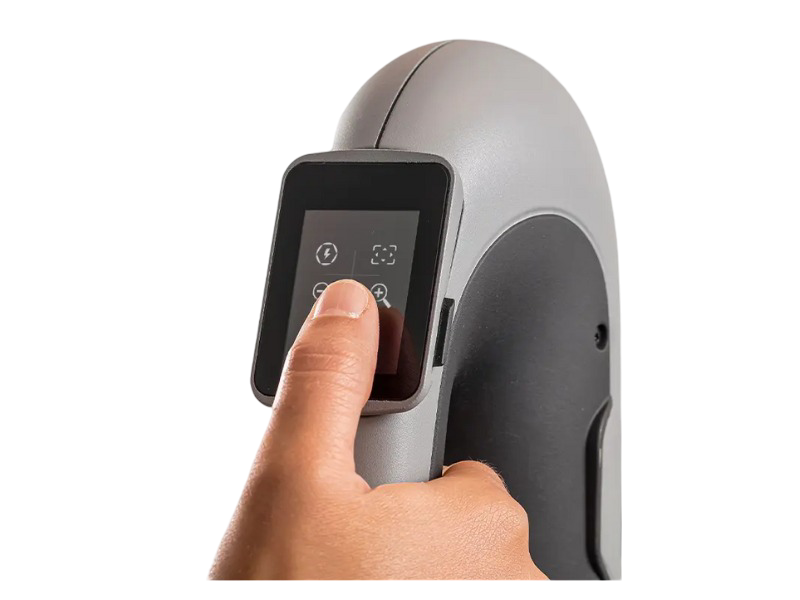

Scanner controls Touchscreen
Color resolution (on object) 50 to 200 DPI
Positioning methods Geometry and/or targets and/or texture
Measurement rate 1,250,000 measurements/s
Dimensions 304 x 150 x 79 mm
Weight 950 g
Connectivity USB 3.0
Output formats (peel 3) .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .dxf, .iges, .step
