High Precision, High Performance Double Column Machining Advantage

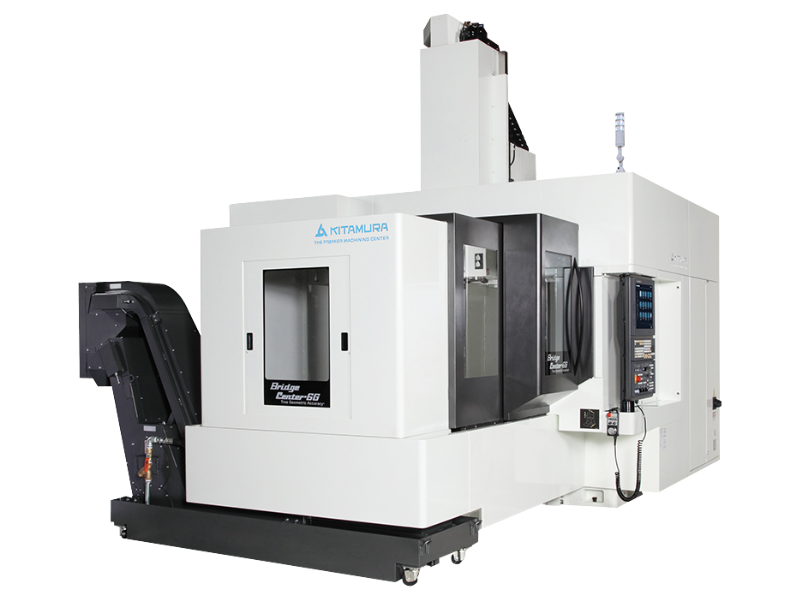

Kitamura’s Bridgecenter-6G #50 high-precision, double column vertical machining center offers an extra-long Y-axis travel of 1,095mm (43.1”) in combination with a large 1,530mm (60.2”) X-axis travel taking up only approximately 136.6” x 176.1” (WxD) of floor space. A #50, 12,000rpm 4-step geared spindle offers the flexibility and versatility needed in the heavy duty cutting of molds to the high-speed, high accuracy cutting required for high precision, more intricate parts.
With a positioning accuracy of +/-0.002mm (+/-0.000079”)/full stroke and repeatability of +/-0.001mm (+/-0.000039”) The Bridgecenter-6G #50 is the perfect machine for large, long parts that require a wider machining area, most often associated with the Die Mold, Aerospace and Defense Industries.
