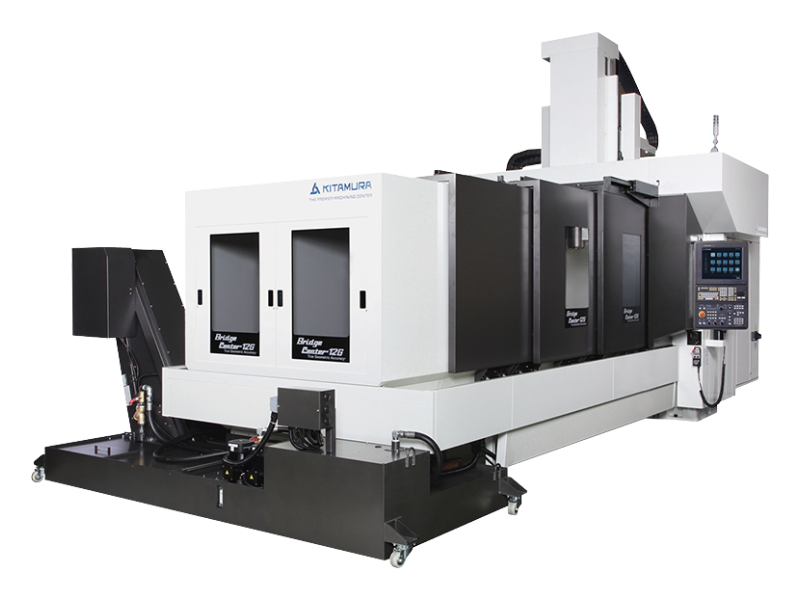

The Bridgecenter-12G Double Column Vertical Machining Center offers an expansive work envelope in combination with a table load capacity of up to 6,000kg (13,227Lbs) for heavy duty cutting of molds to the cutting of larger parts requiring higher precision, accuracy and speed. Table size is an ample 1,370mm (53.9”) x 3,500mm (137.8”) with an extra-long X travel distance of 3,050mm (120.1”) making this machine the perfect companion for Aerospace, Defense and Mold/Die applications.
Exceptional precision with positioning accuracy of +/-0.002mm (+/-0.000079”)/full stroke and repeatability of +/-0.001mm (+/-0.000039”) – The Bridgecenter-12G uses super-finish, ground-hardened solid box ways on all axes, delivering outstanding accuracy in full stroke positioning and repeatability. A 12,000rpm 4-step gear driven dual contact spindle structure offers the versatility for roughing with fine-finish capabilities in a single set-up on a variety of materials from light to heavy duty cutting.
