AL Series

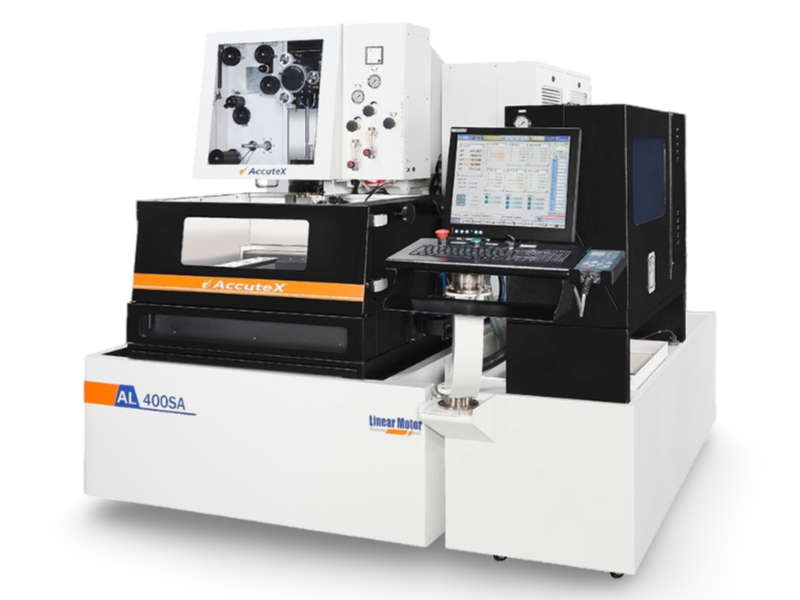

Accutex - AL - 400SA
| Specification | Value |
|---|---|
| Max. Work Piece Size L x W x H (mm) | 790 x 610 x 215 |
| Max. Work Piece Weight (kg) | 400 |
| X x Y Stroke (mm) | 400 x 300 |
| U x V Stroke (mm) | 100 x 100 |
| Z Stroke (mm) | 220 |
| Max. Cutting Taper (H=100) | ±21° |
| Wire Spool Weight (kg) | 10 |
| Foot Print W x D x H (mm) | 2051 x 2990 x 2070 |
| Water System Capacity (L) | 630 |
| Machine Weight (kg) | 3000 |
(*)To acquire the optimum stable cutting performance, the suggested-maximum height of cutting workpiece is the Z axis stroke minus 30mm.
