DED

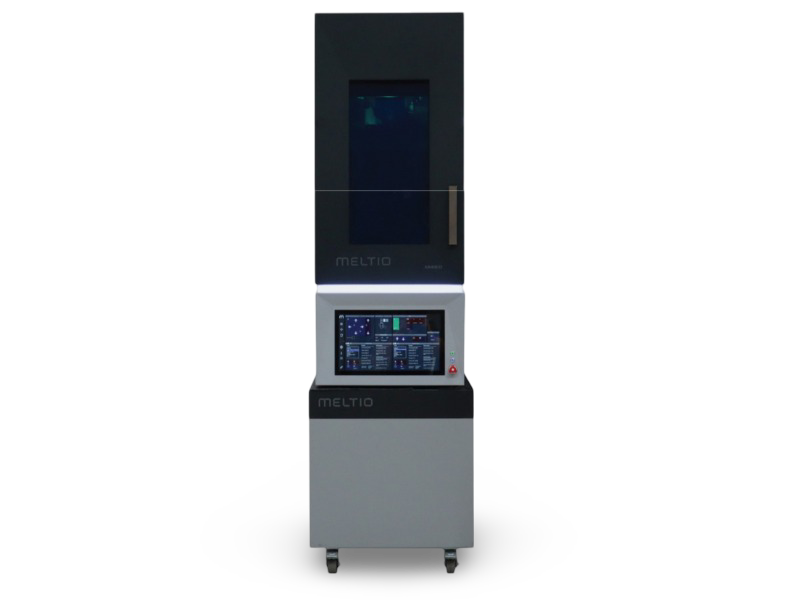

Meltio - M450

1
Meltio - M450
Meltio - M450 Meltio - M450
Category Specifications
Dimensions (WxDxH) 560 x 600 x 1400 mm / 22 x 23.6 x 55.1"
Print Envelope (WxDxH) 145 x 168 x 390 mm / 5.7 x 6.6 x 15.3"
Weight 250 kg / 560 lbs
Laser Power and Type 6 x 200W direct diode lasers for total 1200W
Laser Wavelength 976 nm
Power Input 200-240 V single or three phase
Power Consumption 2–5kW peak, depending on options selected
Process Control Closed-loop, laser and wire modulation
Enclosure Laser-safe, sealed, controlled atmosphere
Interface USB, Ethernet, wireless datalink
Cooling Active water-cooled chiller and temperature-controlled cooling plate included
Water Chiller (WxDxH) 377 x 592 x 1011 mm / 14.8 x 23.3 x 39.8"
Materials Specifications
Wire Materials Compatible with a wide range of welding wires including stainless steels, mild steels, carbon steels, tool steels, Inconel, titanium, and copper alloys
Wire Feedstock Diameter: 0.8 – 1.2 mm / 0.030” – 0.045” Spool Type: BS300 mm / 12"
