FDM

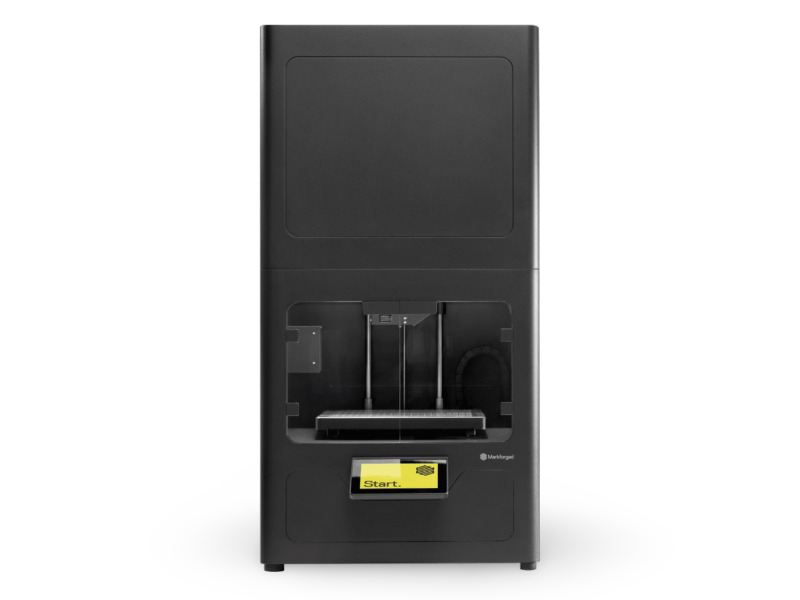

Markforged Metal-X

Printer Properties | ||
---|---|---|
Process | Atomic Diffusion Additive Manufacturing (ADAM) | |
Build Volume | 300 x 220 x 180 mm (11.8 x 8.7 x 7.1 in) | |
Machine Size | 575 x 467 x 1,120 mm (22.7 x 18.4 x 44.1 in), 75 kg (160 lbs) | |
Print Chamber | Heated | |
Print Bed | Heated, vacuum-sealed print sheet, auto bed leveling | |
Print System | Two nozzles — Metal material and release material | |
Power Requirements | 100–120 / 200-240 VAC (12A / 6A), IEC 60320 type C20 | |
Materials | ||
Metal Material | Stainless steel (17-4 PH, 316L*), Tool steel (H13, A2, D2), Inconel 625, Copper, Titanium-6Al-4V* | |
Release Material | Ceramic (consumed at 1:10 ratio to metal spools, on average) | |
Media (Spools) | Filament fed, bound powder | |
Part Properties | ||
Max Part Size | 250 x 183 x 150 mm (9.8 x 7.2 x 5.9 in), 10kg | |
Supports | Metal material with ceramic release layer | |
Layer Height | 50µm and 125µm post-sinter | |
Software | ||
Supplied Software | Eiger Cloud (Other options available at cost) | |
Security | Two-factor authentication, org admin access, single sign-on |
