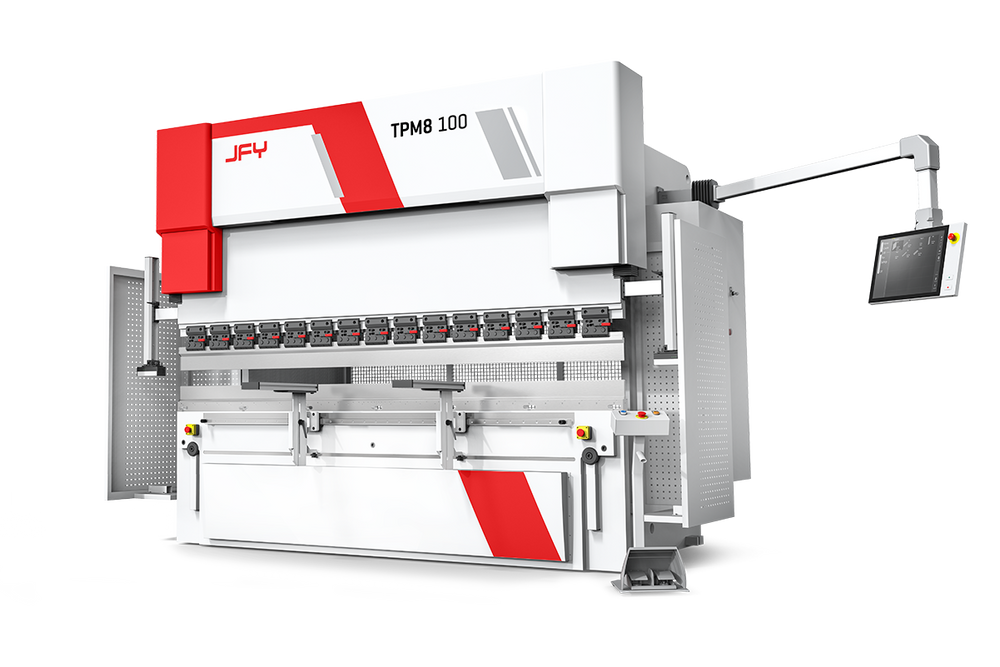

JFY - TPM8 CNC Press Brake

1
10 Remaining
JFY - TPM8 CNC Press Brake
JFY - TPM8 CNC Press Brake JFY - TPM8 CNC Press Brake

TPM8 uses a servo motor instead of an asynchronous motor, retaining the mature and reliable proportional valve control technology. The servo-controlled variable pump technology significantly reduces machine noise, oil temperature and heat. In consequence energy consumption can be lowered by more than 35%.

It comes with German TRUMPF’s TJS90T controller, is a 19″ 3D touch screen graphical controller with a simple and easy to use interface, you have the ability to program and see a 3D graphical representation of the job reducing the chance of error and material wastage.

The controller software and controller are unique to JFY and made by a Trumpf owned company who produces the controllers and writes the software. This is a perfect example of how JFY takes advantage of the advanced technologies produced by the companies in the Trumpf Group.



Features

● Machine body is optimized by finite element design to ensure high strength and high rigidity during operation

● Compared with traditional CNC bending machines, the frequency of the Y-axis movement is 30% higher

● A broad range of options and bending tools allow the processing of large and complex workpieces

● High-performance CNC Control TJS-90 as standard configuration

● Automatic mechanical crowning compensation system

● Push-pull quick clamping as a standard configuration

● ECO friendly using only the power required when pressing



Advantages

● Ensures maximum workflow efficiency and operating convenience

● Solves ram deformation on the workpiece during bending

● Avoids part interference when bending at a small angle

● Excellent bending control

● Best price-performance ratio

● Reducing the chance of error and material wastage

● Achieve maximum bending accuracy
