3 axis VMC

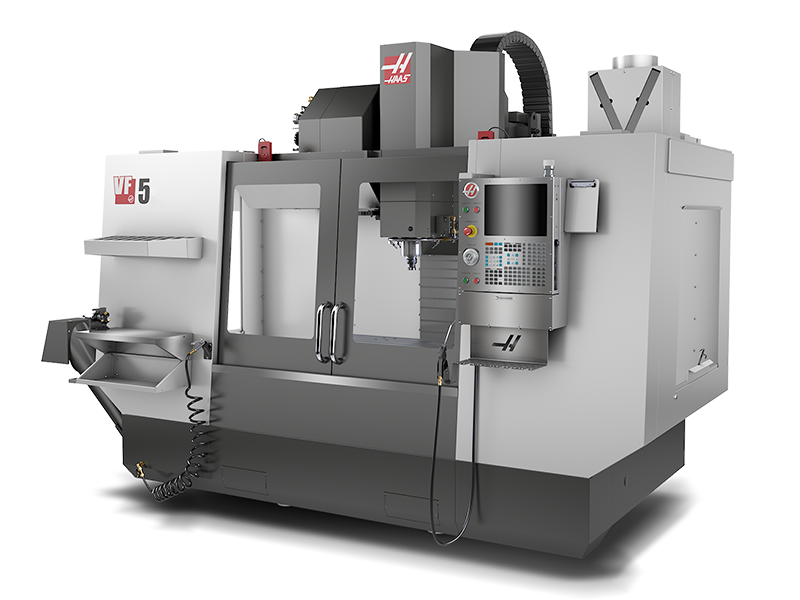

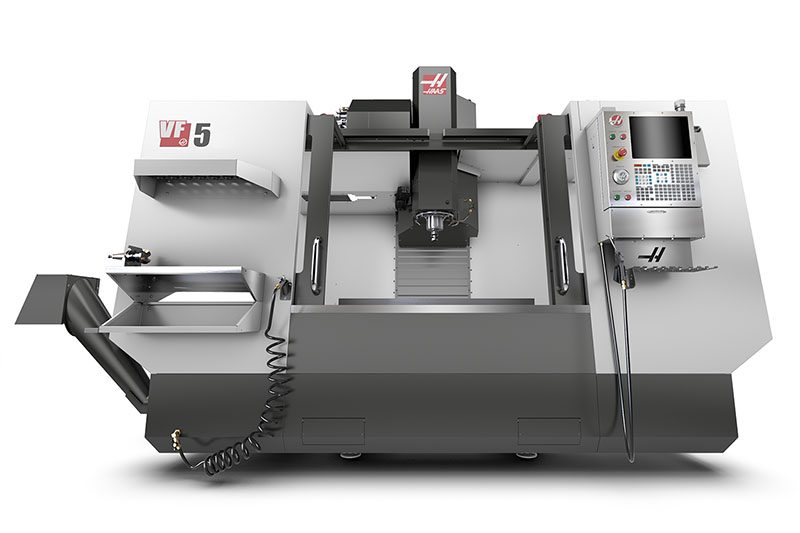

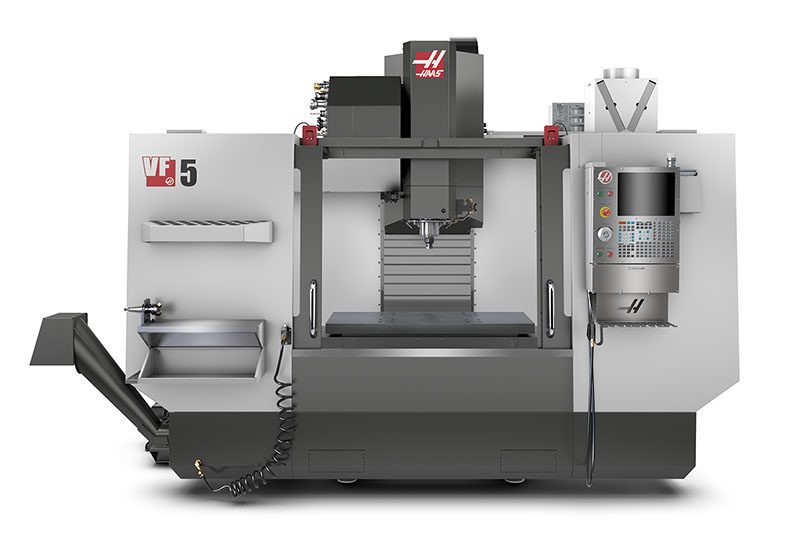

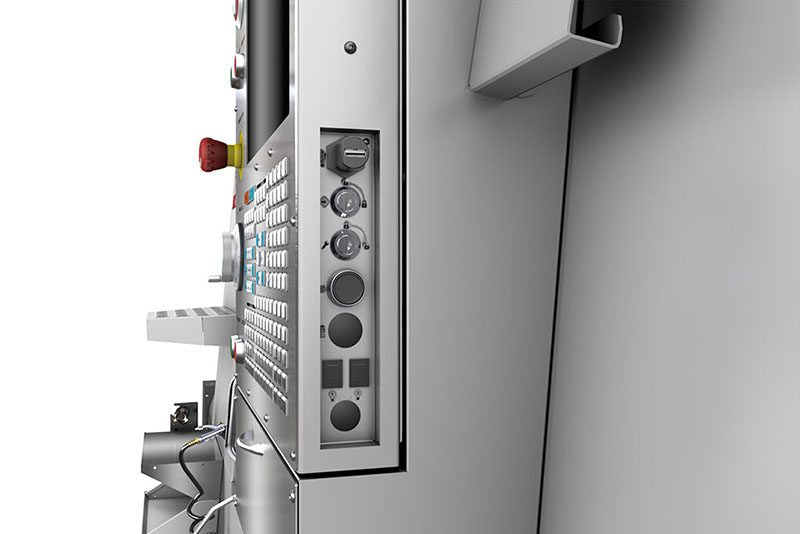

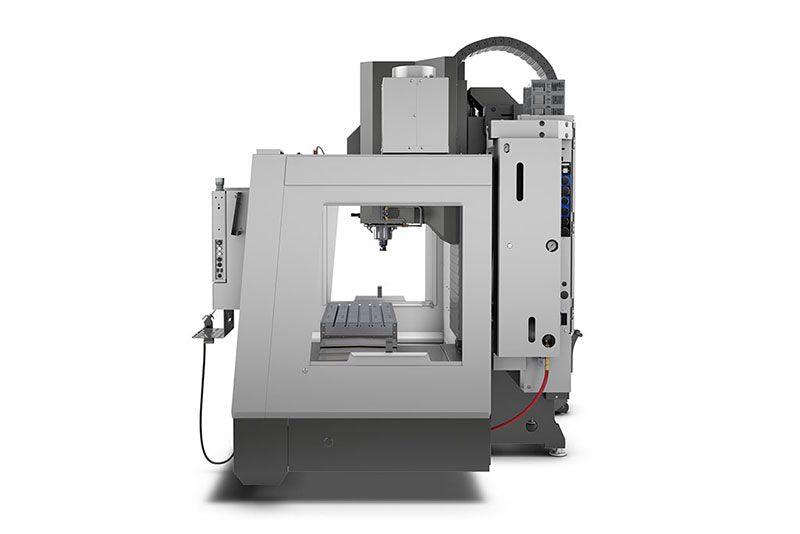

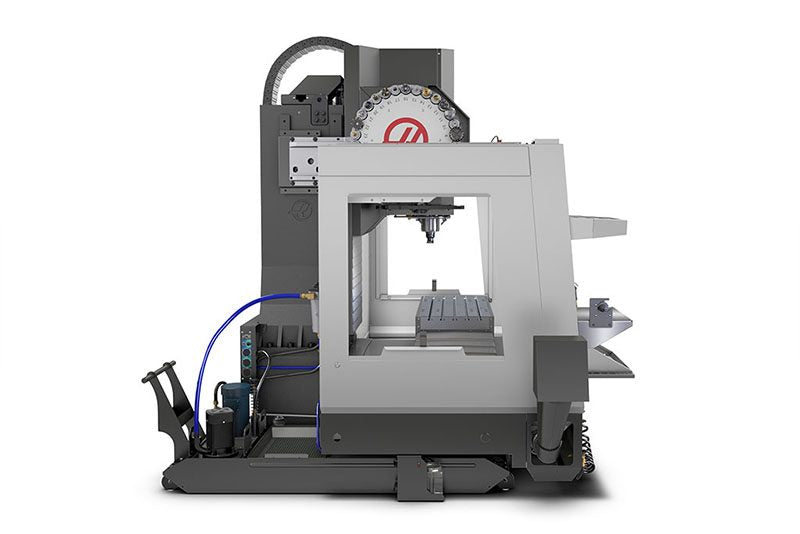

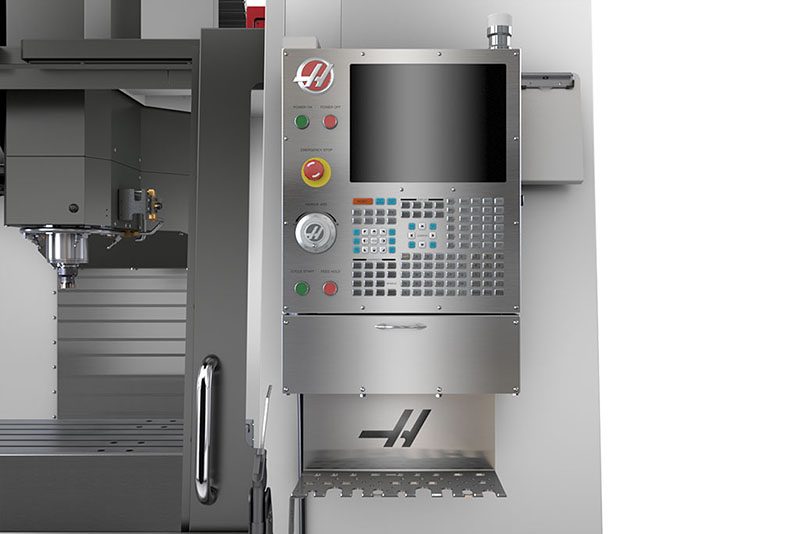

HAAS VF-5/40-R (2008)
| TRAVELS | S.A.E | METRIC |
|---|---|---|
| X Axis | 50.00 in | 1270 mm |
| Y Axis | 26.00 in | 660 mm |
| Z Axis | 25.00 in | 635 mm |
| Spindle Nose to Table (~ max) | 32 in | 813 mm |
| Spindle Nose to Table (~ min) | 7 in | 178 mm |

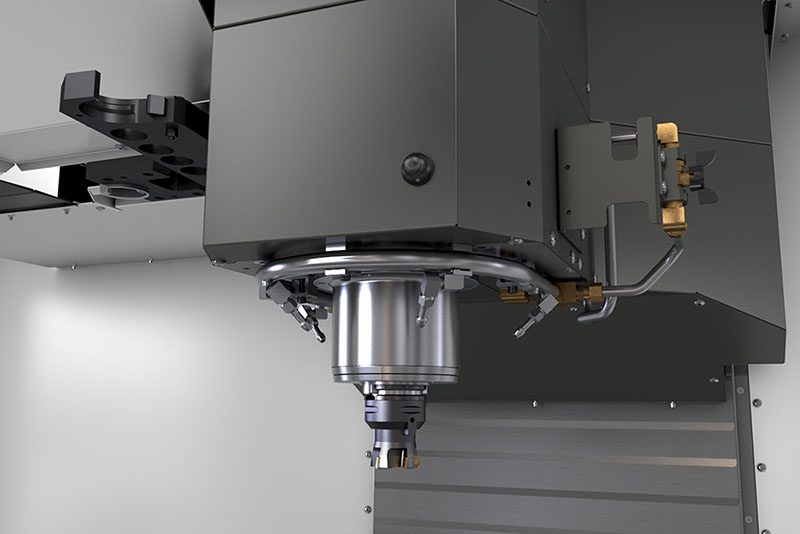

| SPINDLE | S.A.E | METRIC |
|---|---|---|
| Max Rating | 20.0 hp | 14.9 kW |
| Max Speed | 7500 rpm | 7500 rpm |
| Max Torque | 75.0 ft-lbf @ 1400 rpm | 102.0 Nm @ 1400 rpm |
| Max Torque w/opt Gearbox | NA | NA |
| Drive System | Belt Drive | Belt Drive |
| Taper | BT40 | BT40 |
| Bearing Lubrication | Air / Oil Injection | Air / Oil Injection |
| Cooling | Liquid Cooled | Liquid Cooled |

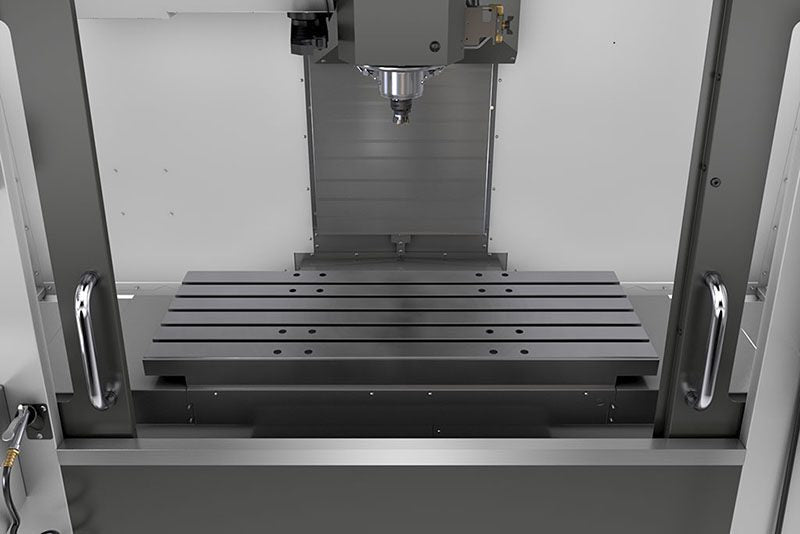

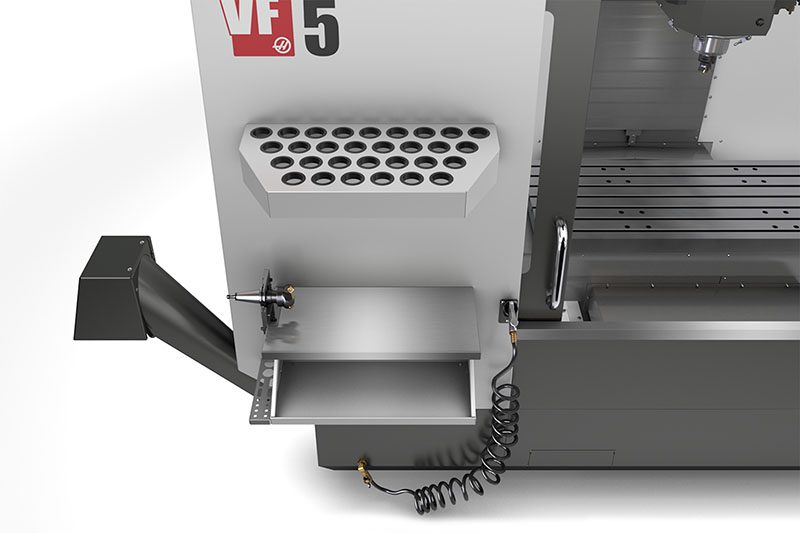

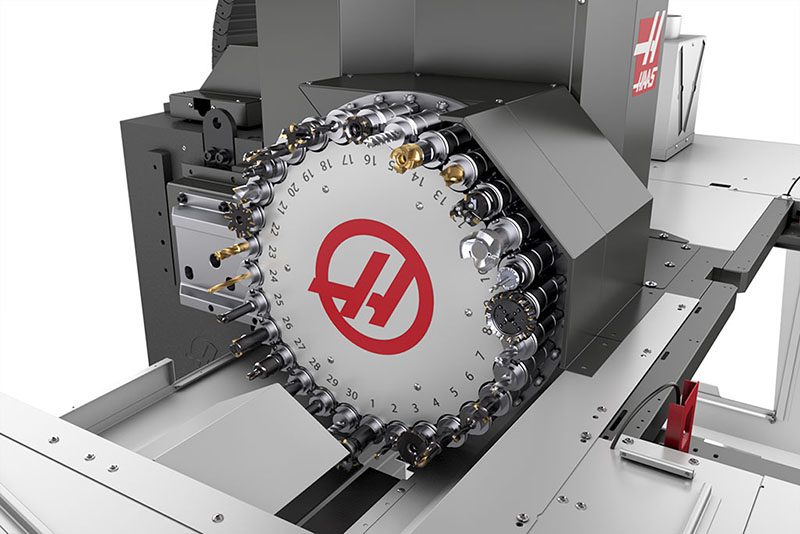

| TABLE | S.A.E | METRIC |
|---|---|---|
| Length | 52.0 in | 1321 mm |
| Width | 23.0 in | 584 mm |
| T-Slot Width | 5/8 in | 16.00 mm |
| T-Slot Center Distance | 3.15 in | 80 mm |
| Number of Std T-Slots | 7 | 7 |
| Max Weight on Table (evenly distributed) | 4000 lb | 1814 kg |
| FEEDRATES | S.A.E | METRIC |
|---|---|---|
| Max Cutting | 500 ipm | 12.7 m/min |
| Rapids on X | 710 ipm | 18.0 m/min |
| Rapids on Y | 710 ipm | 18.0 m/min |
| Rapids on Z | 710 ipm | 18.0 m/min |
| AXIS MOTORS | S.A.E | METRIC |
|---|---|---|
| Max Thrust X | 3400 lbf | 15124 N |
| Max Thrust Y | 3400 lbf | 15124 N |
| Max Thrust Z | 5600 lbf | 24910 N |
| TOOL CHANGER | S.A.E | METRIC |
|---|---|---|
| Type | Carousel | Carousel |
| Capacity | 20 | 20 |
| Max Tool Diameter (full) | 3.5 in | 89 mm |
| Max Tool Weight | 12.0 lb | 5.4 kg |
| Tool-to-Tool (avg) | 4.20 s | 4.20 s |
| Chip-to-Chip (avg) | 4.50 s | 4.50 s |
| GENERAL | S.A.E | METRIC |
|---|---|---|
| Coolant Capacity | 95 gal | 360 L |
| AIR REQUIREMENTS | S.A.E | METRIC |
|---|---|---|
| Air Required | 4 scfm @ 100 psi | 113 L/min @ 6.9 bar |
| ELECTRICAL SPECIFICATION | S.A.E | METRIC |
|---|---|---|
| Input AC Voltage (3 Phase) - Low | 200 VAC | 250 VAC |
| Input AC Voltage (3 Phase) - High* | 380 VAC | 480 VAC |
