GA Series

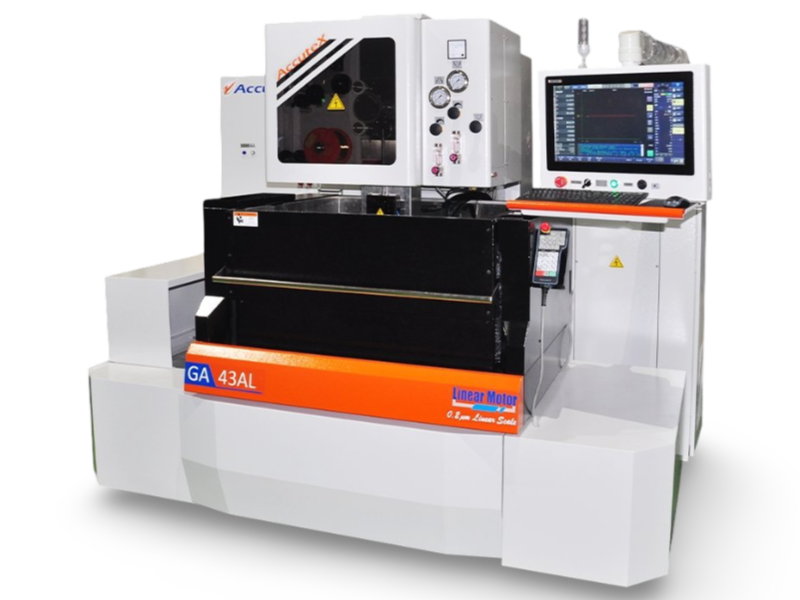

Accutex - GA - 43

1
Accutex - GA - 43
Accutex - GA - 43
Specification Value
Max. Work Piece Size L x W x H (mm) 880 x 630 x 215
Maximum Height of Cutting Workpiece 175
Max. Work Piece Weight (kg) 400
X x Y Stroke (mm) 400 x 300
U x V Stroke (mm) 60
Z Stroke (mm) 220
Max. Cutting Taper (mm) ±15˚ / H80
Max. Wire Spool Weight (kg) 10
Foot Print W x D x H (mm) 2200 x 2570 x 1995
Water System Capacity (L) 730
Machine Weight (kg) 2800

(*) “A” stands for AWT optional function.
(*) “L” stands for linear motor optional function.
